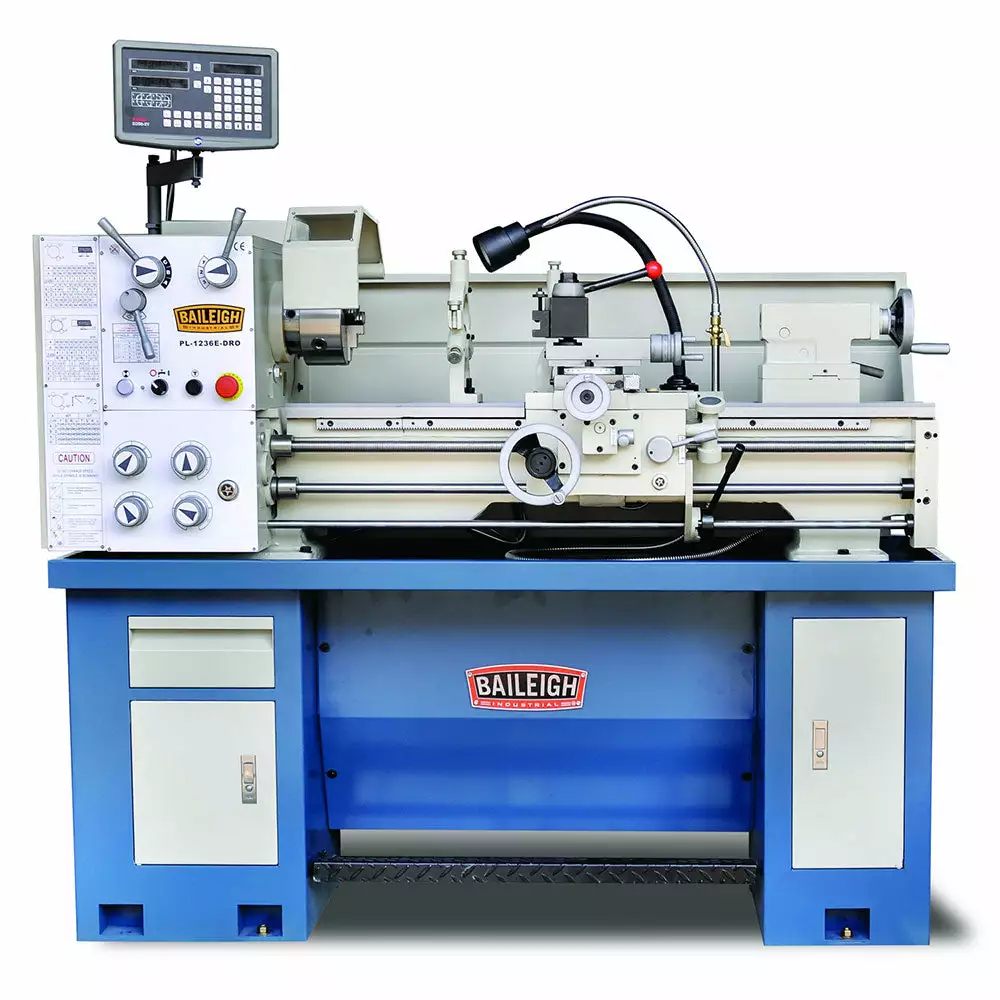

Baileigh 1016617 PL-1236E-DRO-1.0 220V 1PH Variable Speed Metal Lathe

Features

• Recommended for small fabricators, schools, or garages.
• 70 to 1,400 rpmvariable speed.

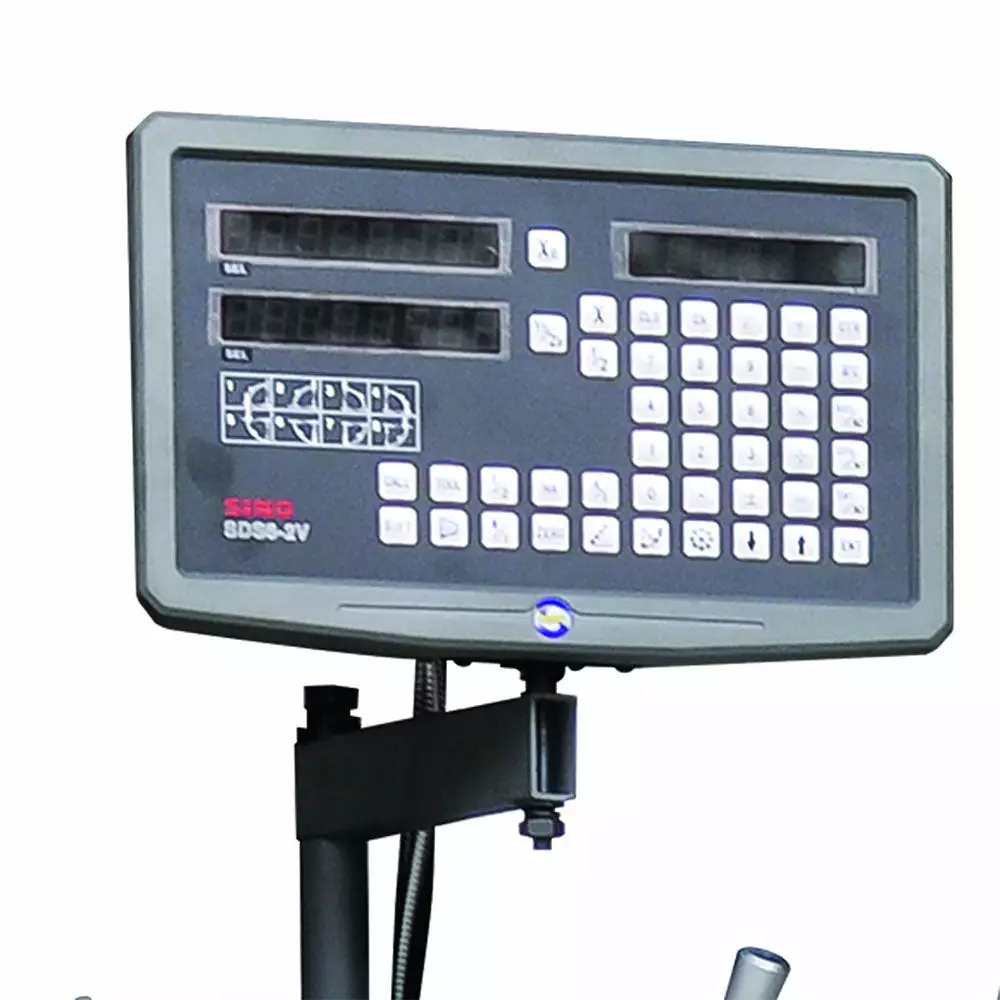

• Integrated digital readout (DRO) helps you get repeatable results.
• Quick-change tool post makes tooling changes more efficient.
• Gear system allows for taping, turning, and polishing.
• All ways are ground and hardened to ensure long life.
• Runs on 220-volt single-phase power.
• Capable of standard and metric threading.(Metric with optional kit)
• Quick-change tool post helps you save time.
• 3-jaw and 4-jaw chucks can hold both square and rounded materials.
• Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.
• Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.
• Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.
• Foot brake helps keep your shop safe.

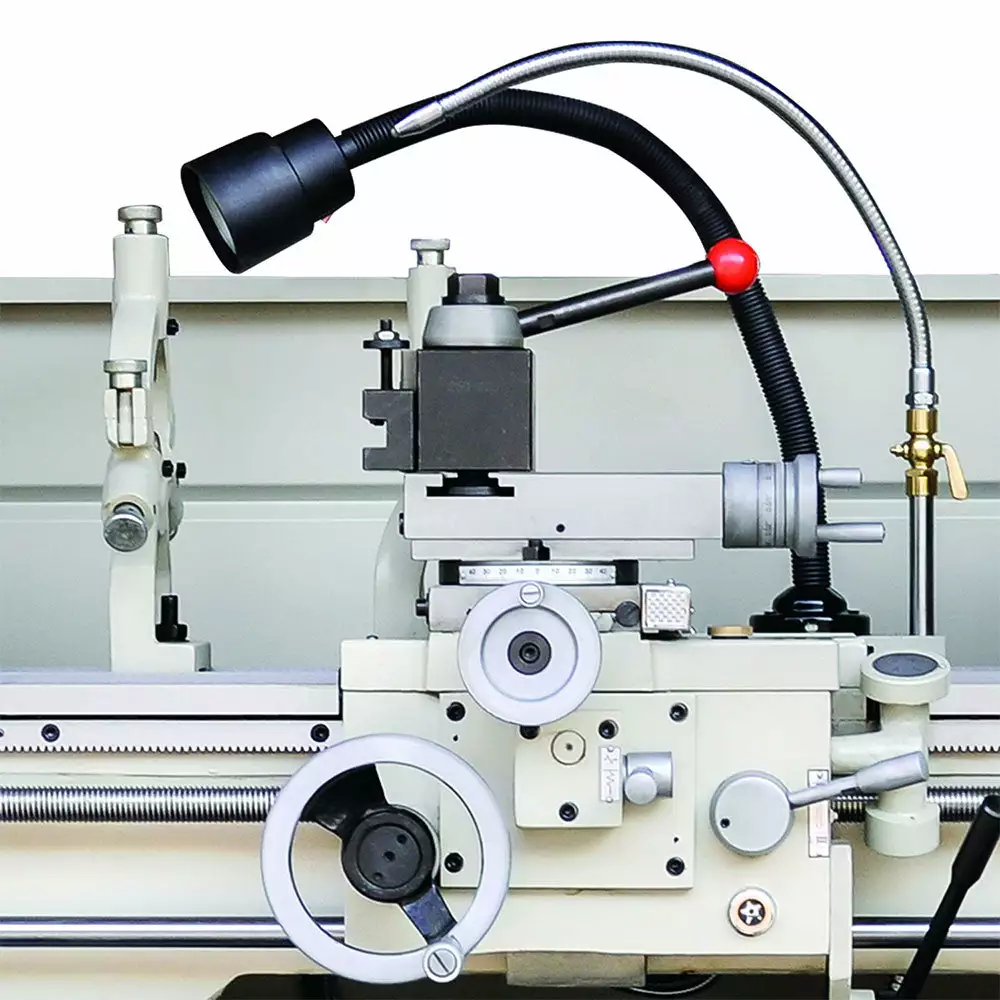

• Halogen work light comes standard.

What’s in The Box

• PL-1236E-DRO-1.0 – Metal Lathe
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	PL-1236E-DRO-1.0

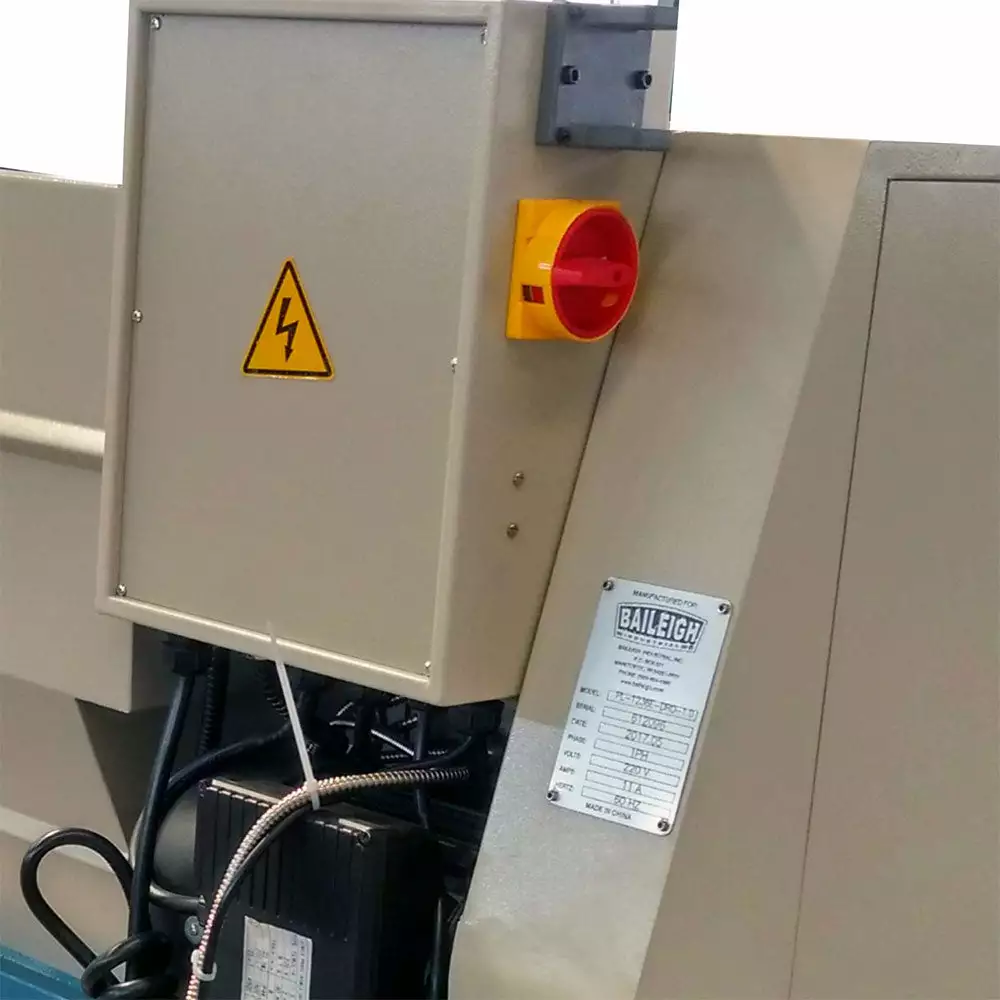

Power	220V / 1-phase
Sleeve Travel	4″
Spindle Bore	1.50″
Spindle Bore Taper	Morse #5
Sleeve Taper	Morse #3
Sleeve Diameter	1.250″
Range Of Inch Threads	4 – 56 T.P.I.
Metric Thread Range	0.4 – 7 mm
Spindle Nose	D1-4″
Travel Of Cross Slide	5.312″
Travel Of Top Slide	3.250″
Width Of Bed	7.125″

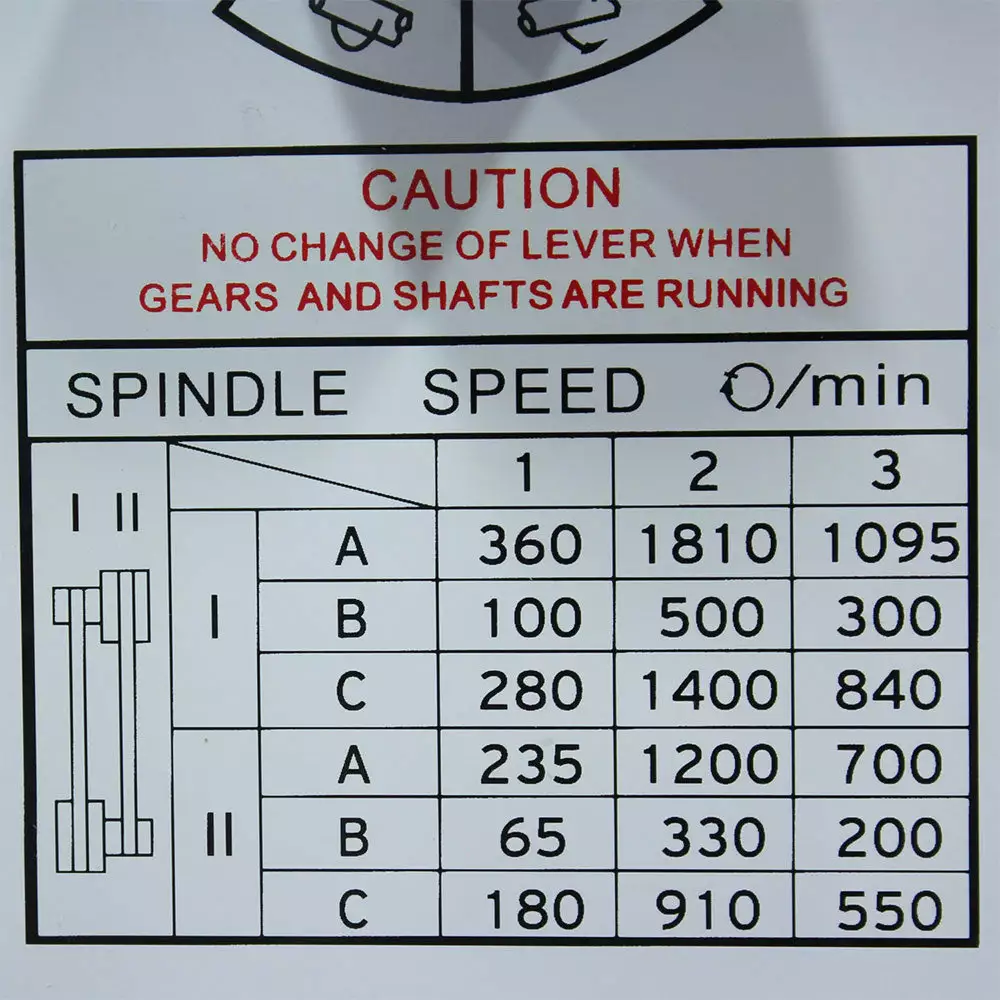

Spindle Speed	9 (70 – 1400 rpm)
Swing Over Bed	12″
Swing Over Cross Slide	7.625″

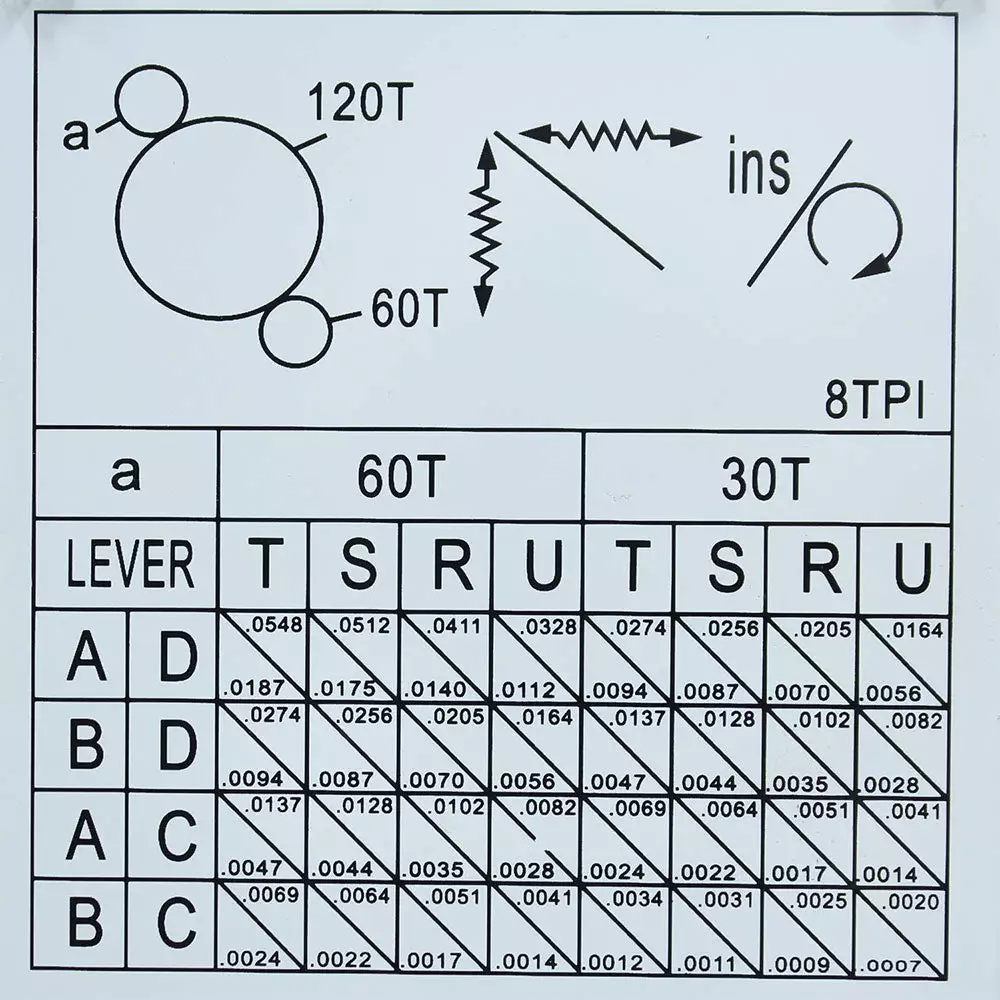

Longitudinal Feed Range	0.002″ – 0.0548″/rev
Lead Screw Thread Pitch	8 T.P.I.
Max. Tool Selection	.625″ x .625″
Cross Feed Range	0.007″ – 0.0187″/rev
Distance Between Centers	3666
Dimensions (Inches)	69 x 44 x 62
Weight	1420 lbs
