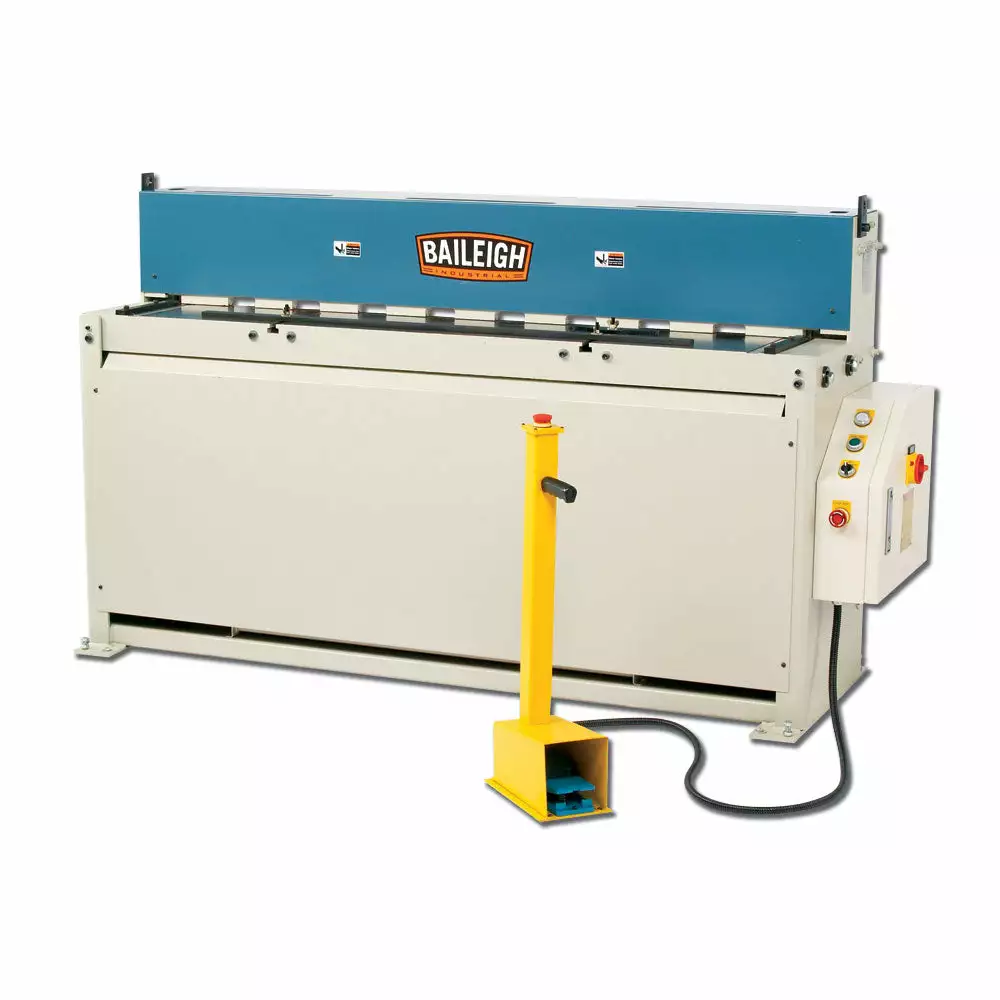

Baileigh 1007176 SH-6014 60″ Hydraulic Powered Shear W/ 14 Ga Capacity

Features

• 60” length.
• 14 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 3 hp motor runs on 220-volt 3-phase power.

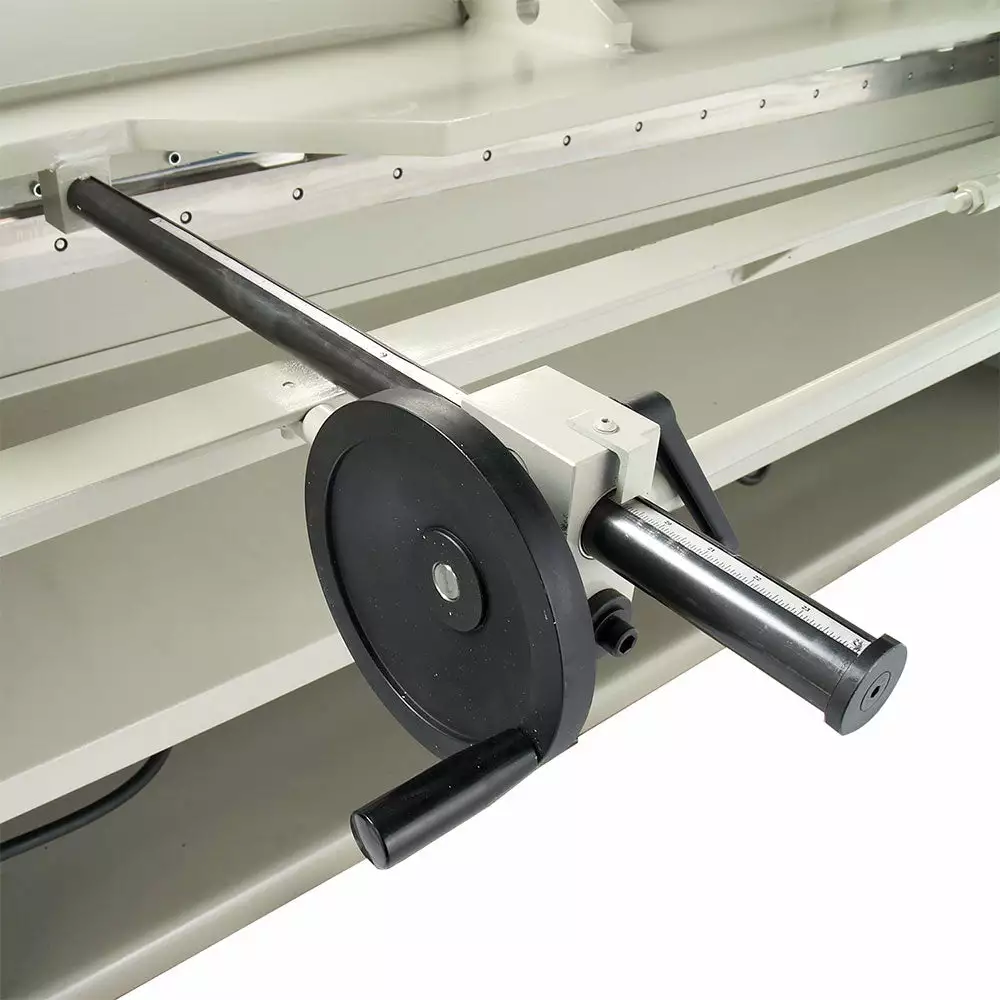

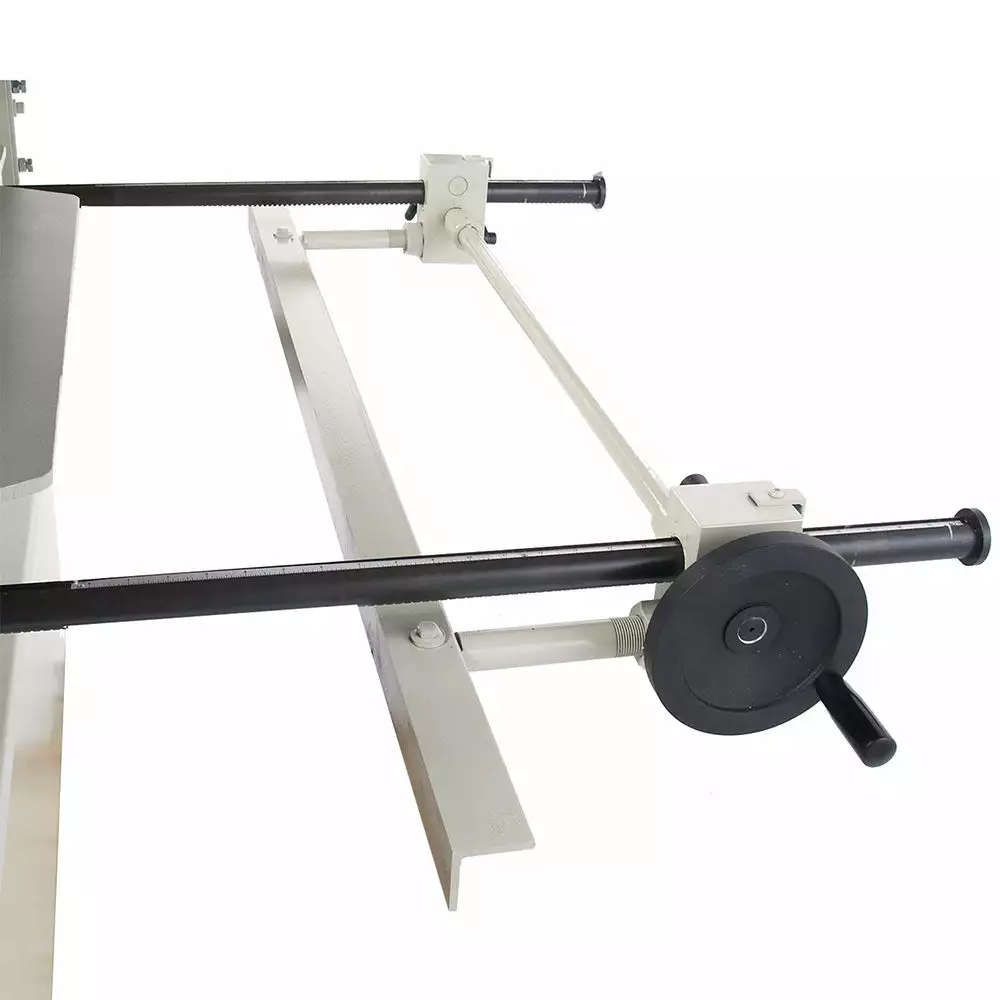

• Adjustable 24” backgauge ensures precise repeatability.

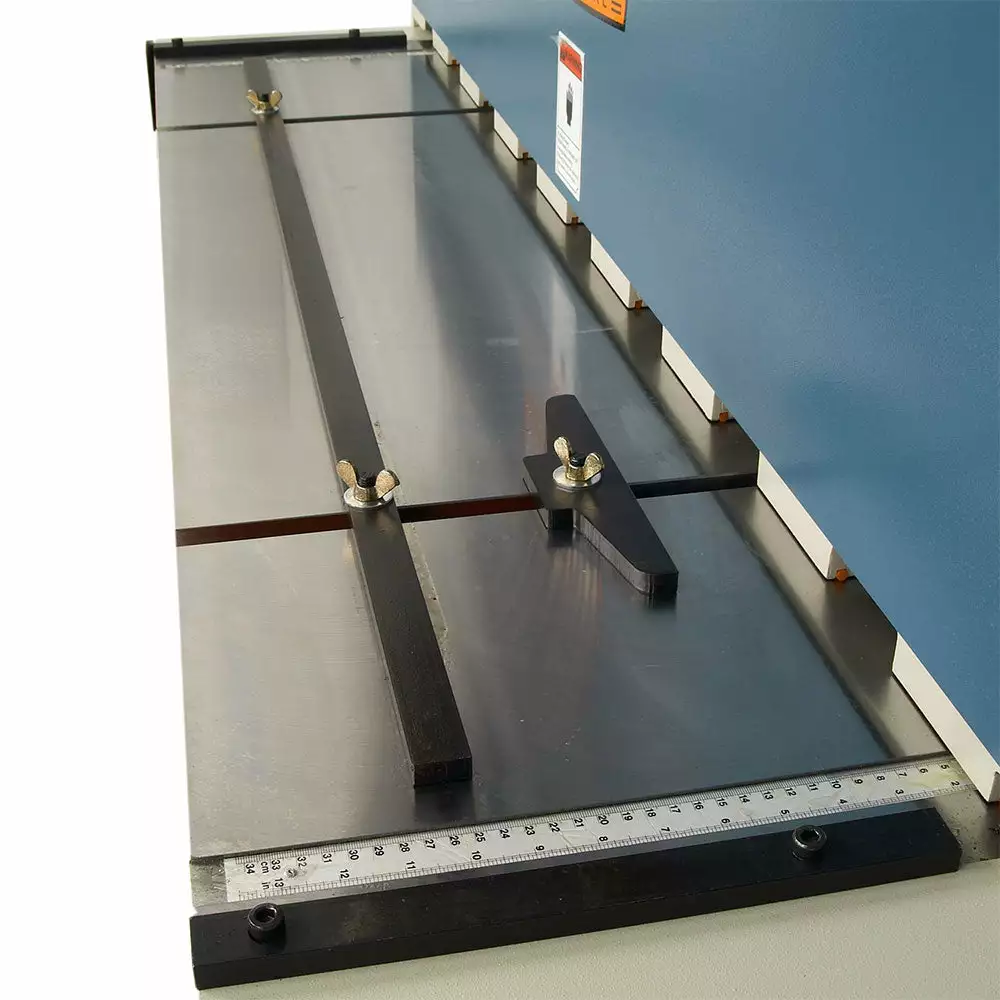

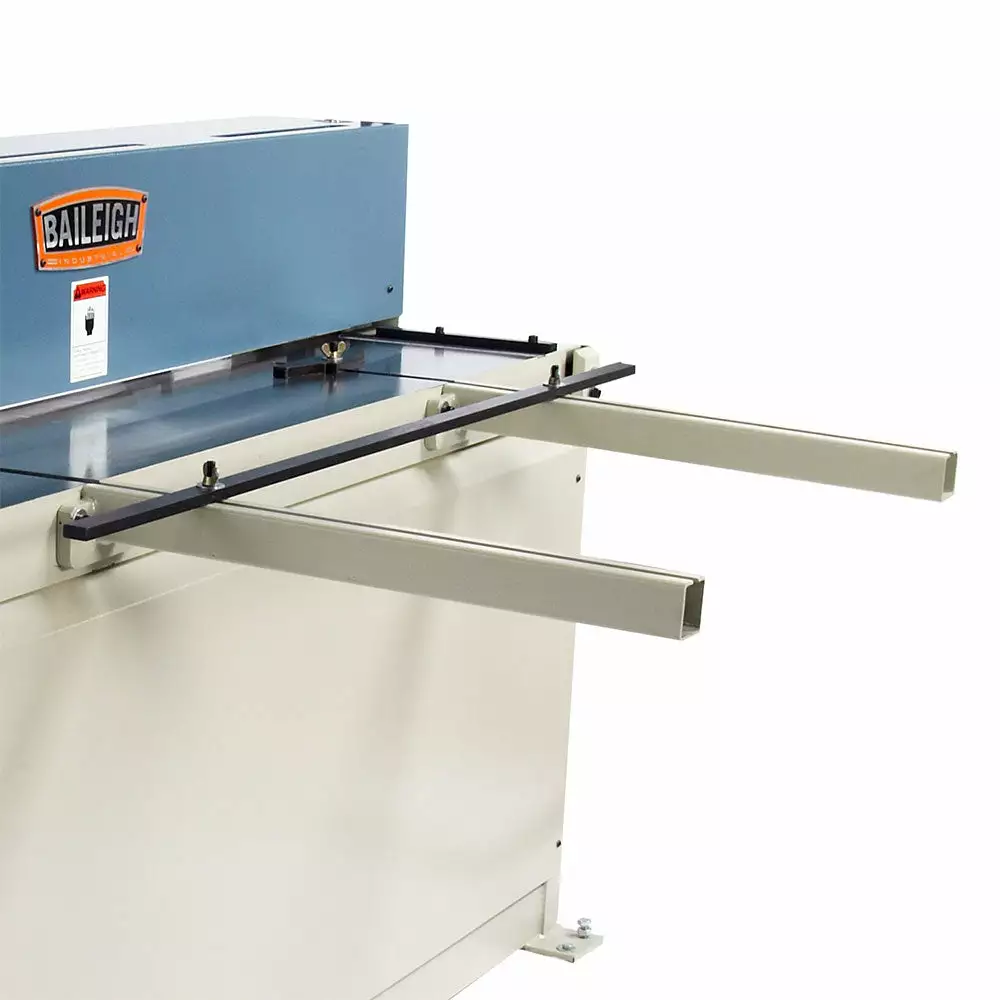

• Front support arms and table guides keep the material square to the blade.
• 3 modes on the operator console:
• Inch mode: Jog the control and ease the blade down to the material.

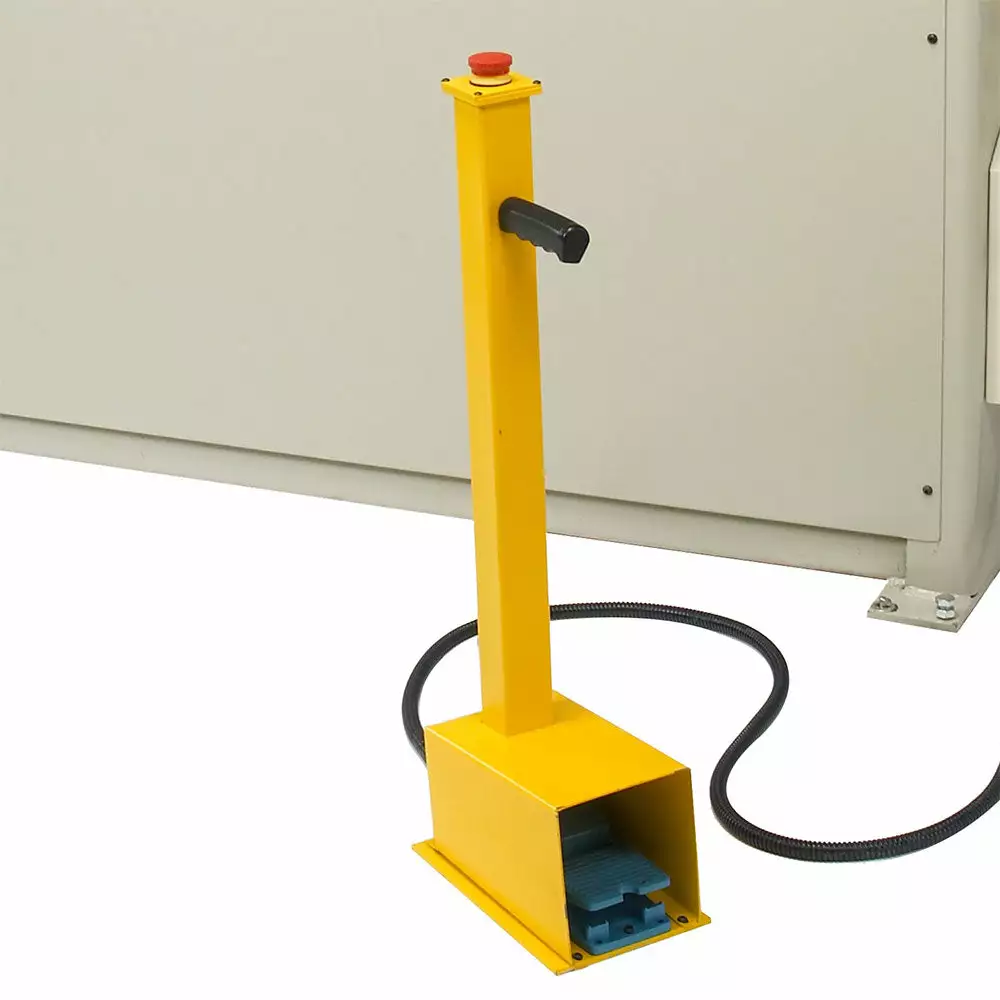

• Single mode: Make one cut cycle per foot pedal push.
• Auto mode: Continue cycling as you hold the pedal down.
• Comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hold-down carriage with 9 fingers clamps the sheet metal firmly against the infeed table, improving blade life.

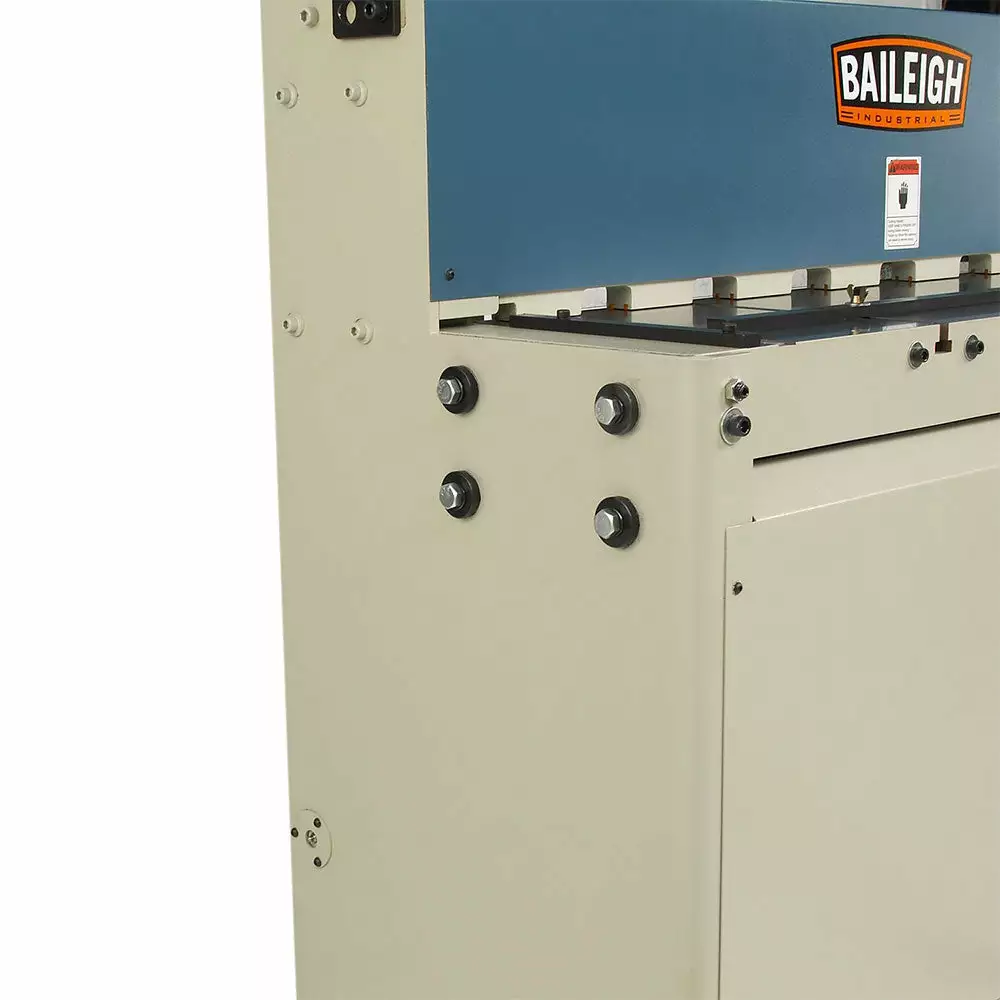

• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
• Covered by a 1-year parts warranty.

What’s in The Box

• SH-6014 – Hydraulic Metal Shear
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	SH-6014
Power	220V / 3-phase
Back Gauge Length	24″
Shear Length	60″
Motor	3 hp
Thickness (SS)	14 ga. (18 ga.)
Strokes Per Minute	30
Front Gauge Length	24″
Blade Angle	1°
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	85x35x54
Weight	2150 lbs
