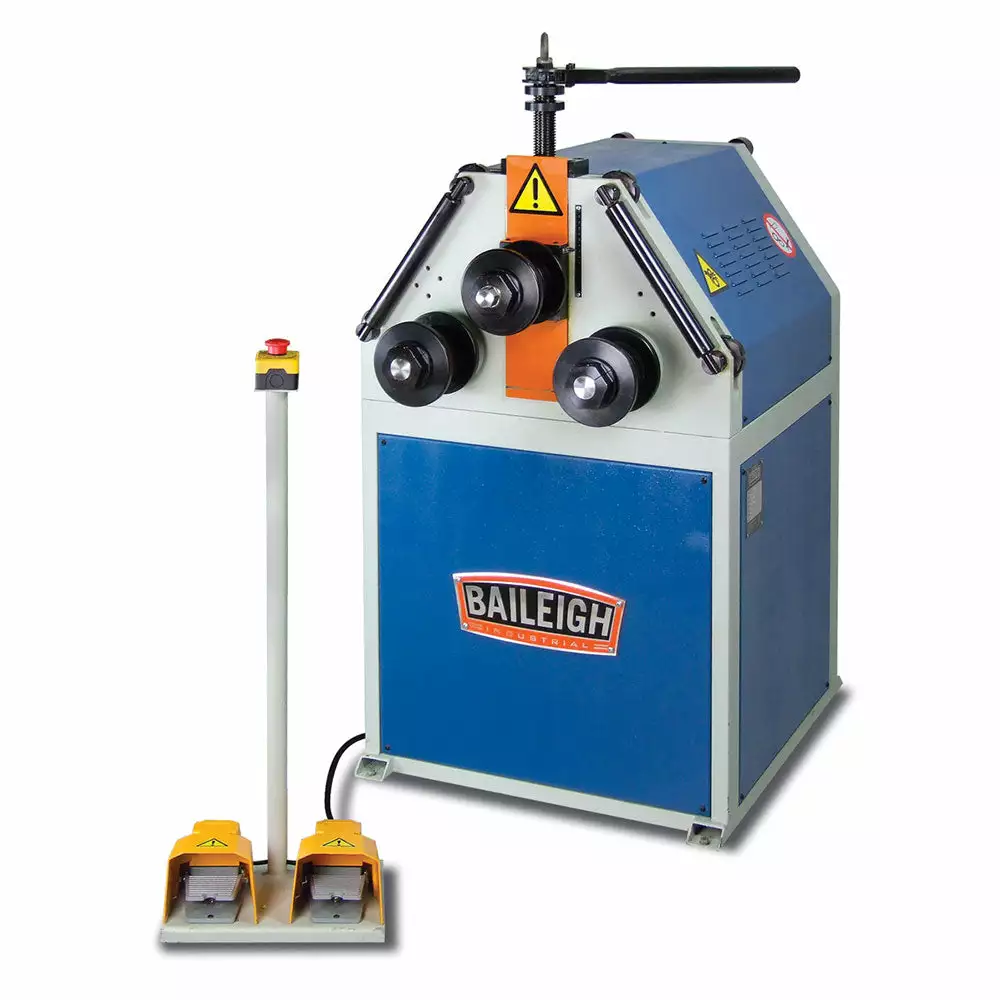

Baileigh 1006855 R-M55 220V Single Phase Variable Speed Roll Bender

Features

• Requires just 220 volts of single-phase power and will work in any fabrication shop or even out on job sites.
• Maximum capacity of 2.75″ round tubing and 2” schedule 40 pipe.

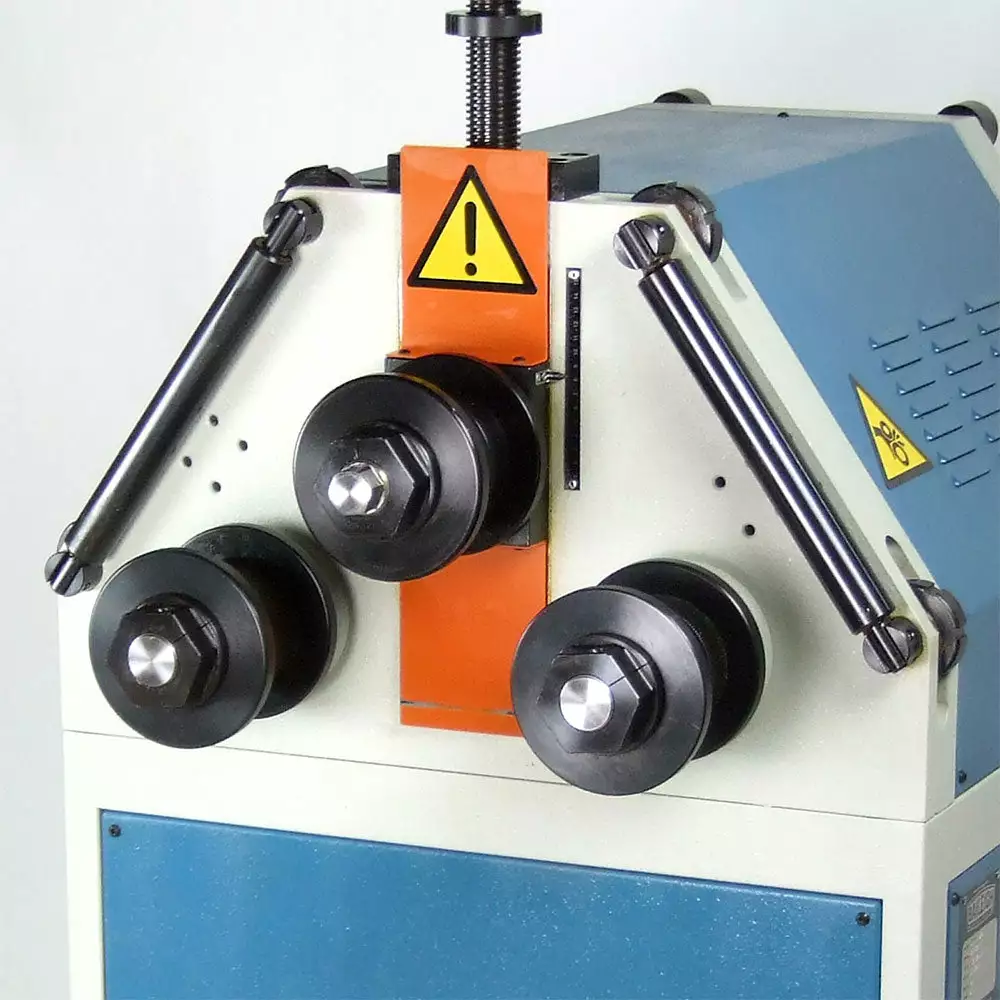

• Manual top-shaft machine with 2 driven rolls (3 rolls total).

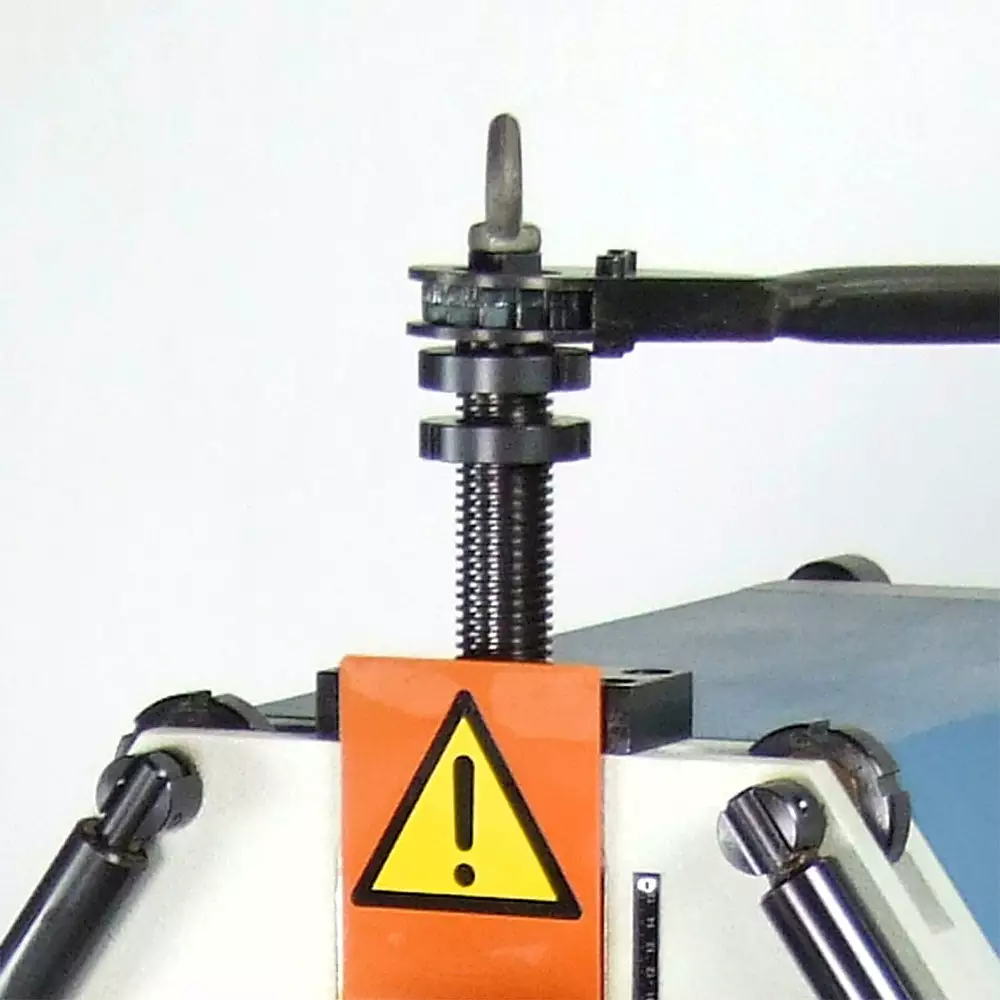

• Large ratchet offers extra leverage for manual control of top roll position.

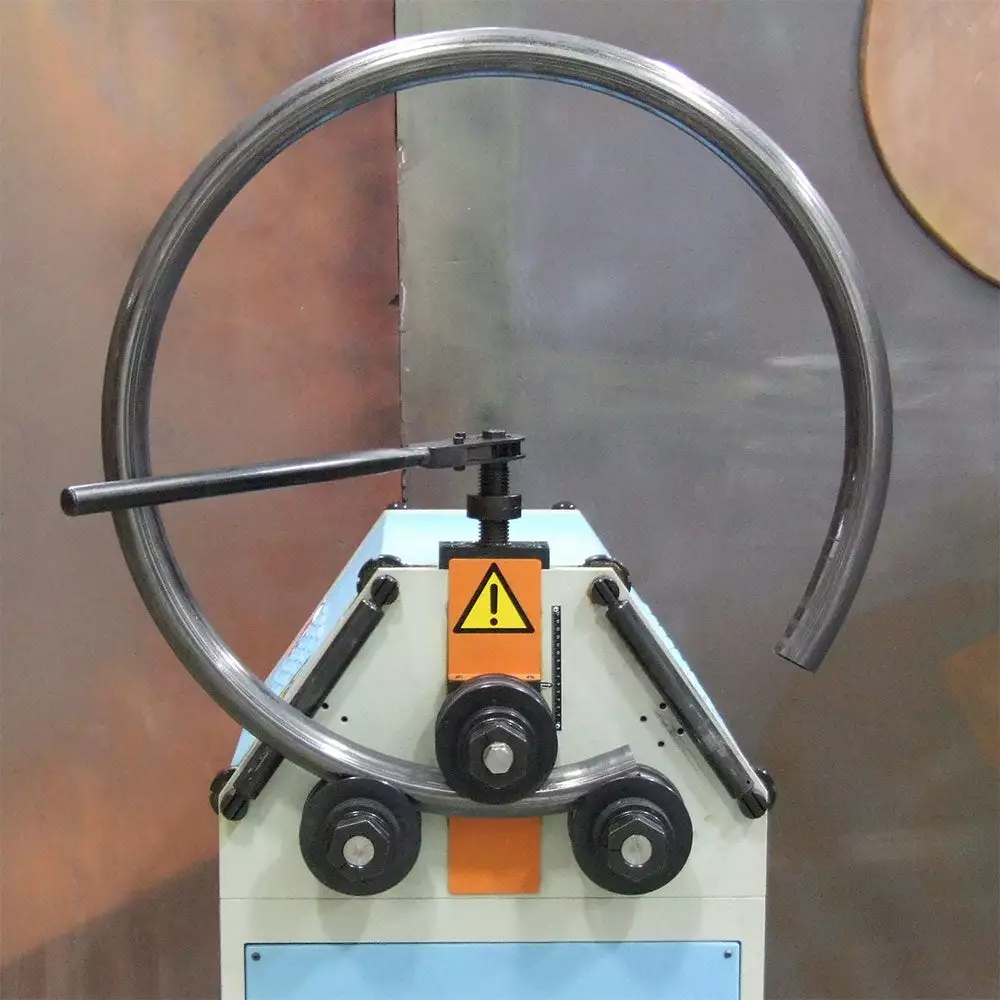

• You can operate the R-M55 in vertical mode, for small rolling projects, or in horizontal mode, for large rolling projects.
• Variable-speed inverter allows you to finetune the rolling speed for a given material.

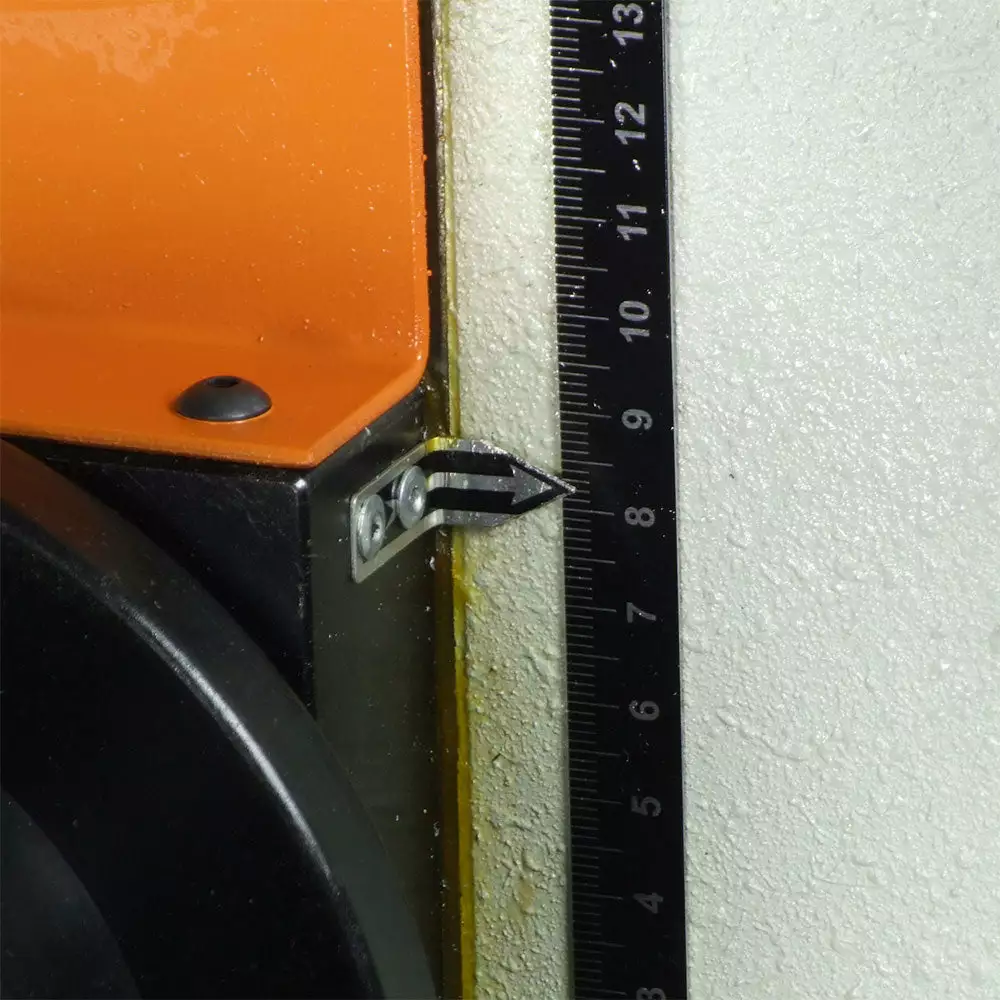

• Easy-to-read scale indicates top roll position, helping you easily make repeatable bends for production runs.

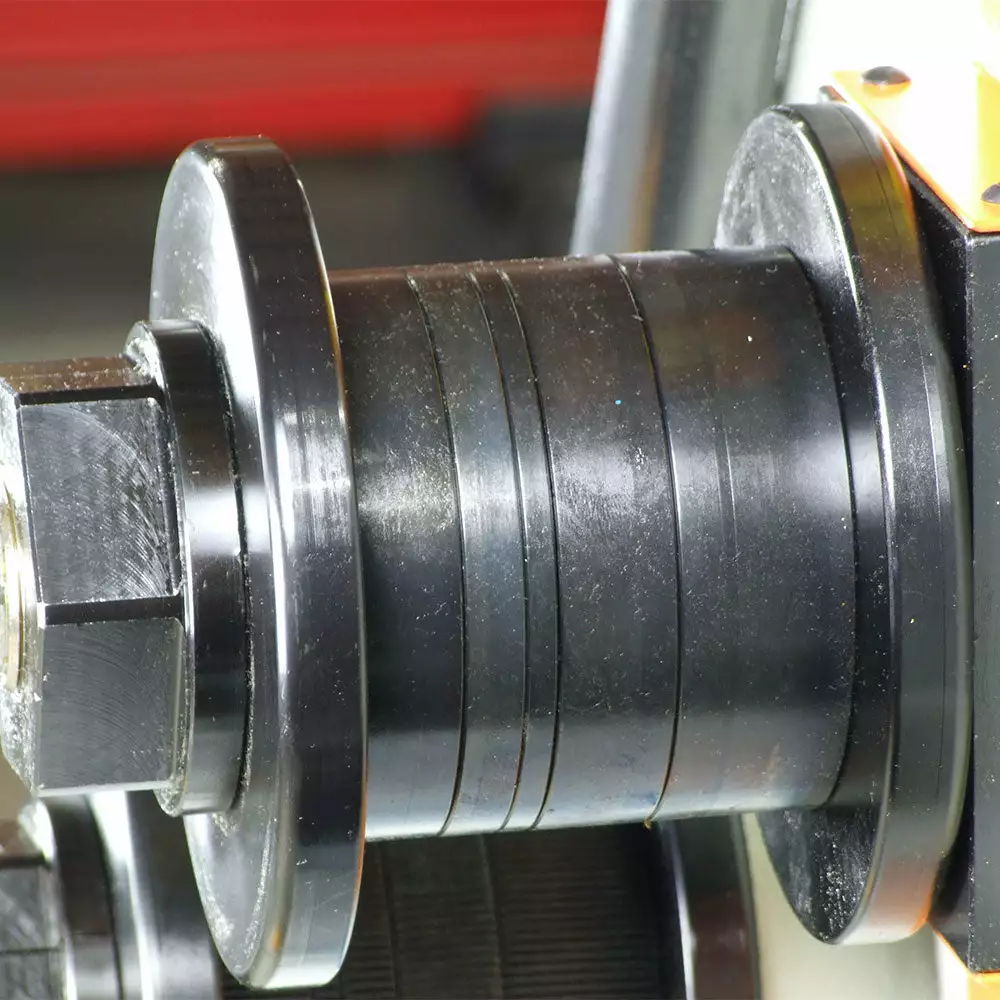

• Includes segment rolls and lateral roll guides to keep material from twisting.

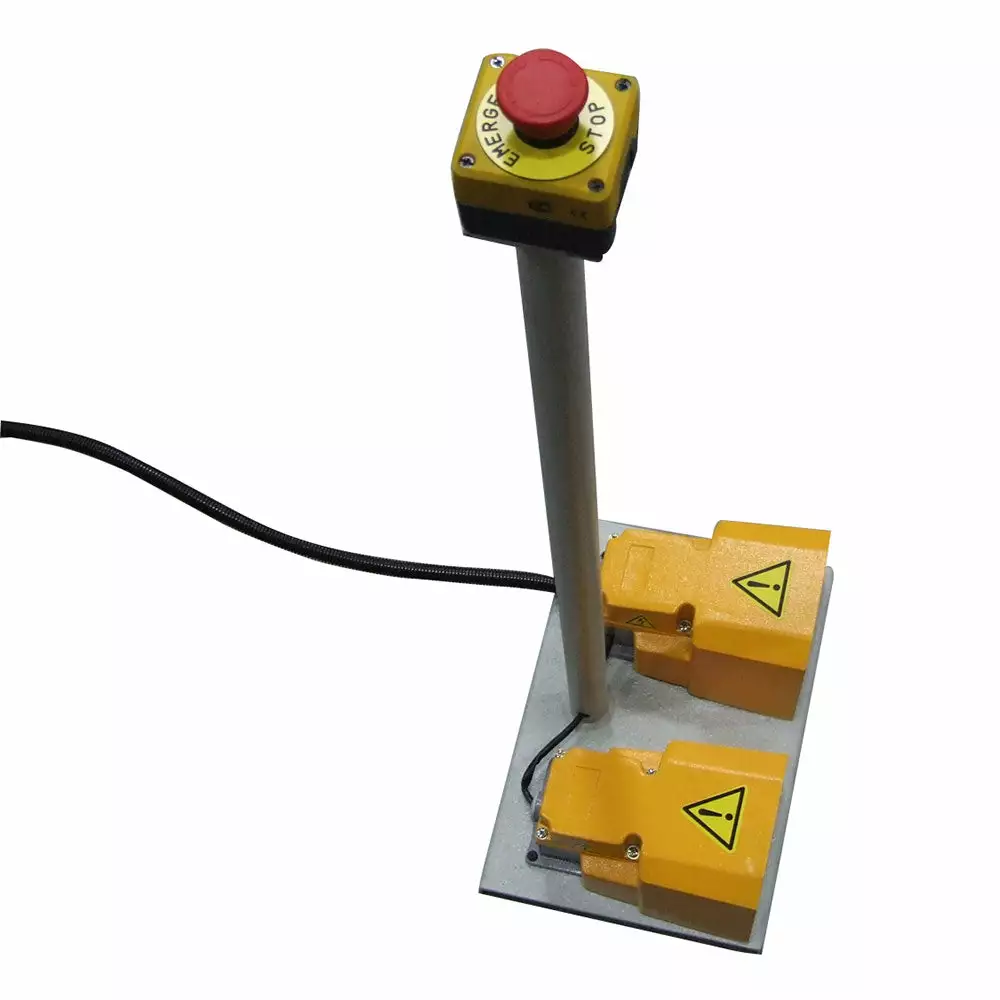

• Foot pedal controls let you conveniently stop and start the bender.
• Accepts optional rolls (available from Baileigh) to bend a variety of profiles like tubing, pipe, angle iron and much more.

What’s in The Box

• R-M55 – Ring Roll
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	R-M55
Power	220V Single Phase
Roll Adjustment	Manual
Pipe Capacity	Size: 2″ (sch. 40) / Min. Dia.: 40″
Round Tube Capacity	Size: 2.75″ (.083″) / Min. Dia.: 60″
Square Tube Capacity	Size: 2″ (.083″) / Min. Dia.: 48″
Solid Round Capacity	Size: 1.375″ / Min. Dia.: 20″
Flat Bar Easy Way	Size: 4″ (.5″) / Min. Dia.: 20″
Flat Bar Hard Way	Size: 2.25″ (.375″) / Min. Dia.: 20″
Angle Iron Capacity	Size: 2″ (.250″) / Min. Dia.: 28″
Shaft Diameter	1.968″
Shaft Center Distance	13.12″
Lower Roll Dia.	5.827″
Pinch	Single
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches)	60 x 44 x 77
Weight	650 lbs
