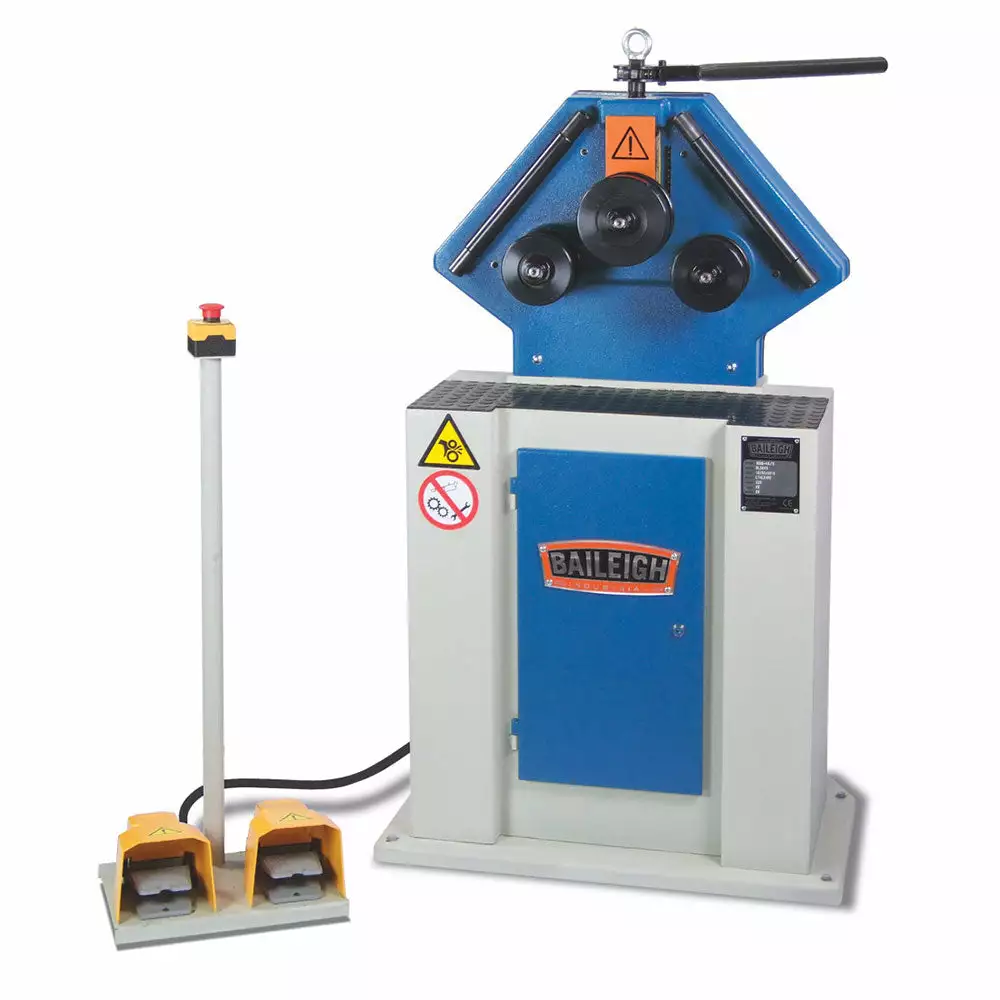

Baileigh 1006852 R-M40 220V Variable Speed Ring Roll Machine Bender

Features

• 220-volt single-phase motor can run at almost any site in North America.
• 2″ round tube and 1.5″ schedule 40 pipe maximum capacity.

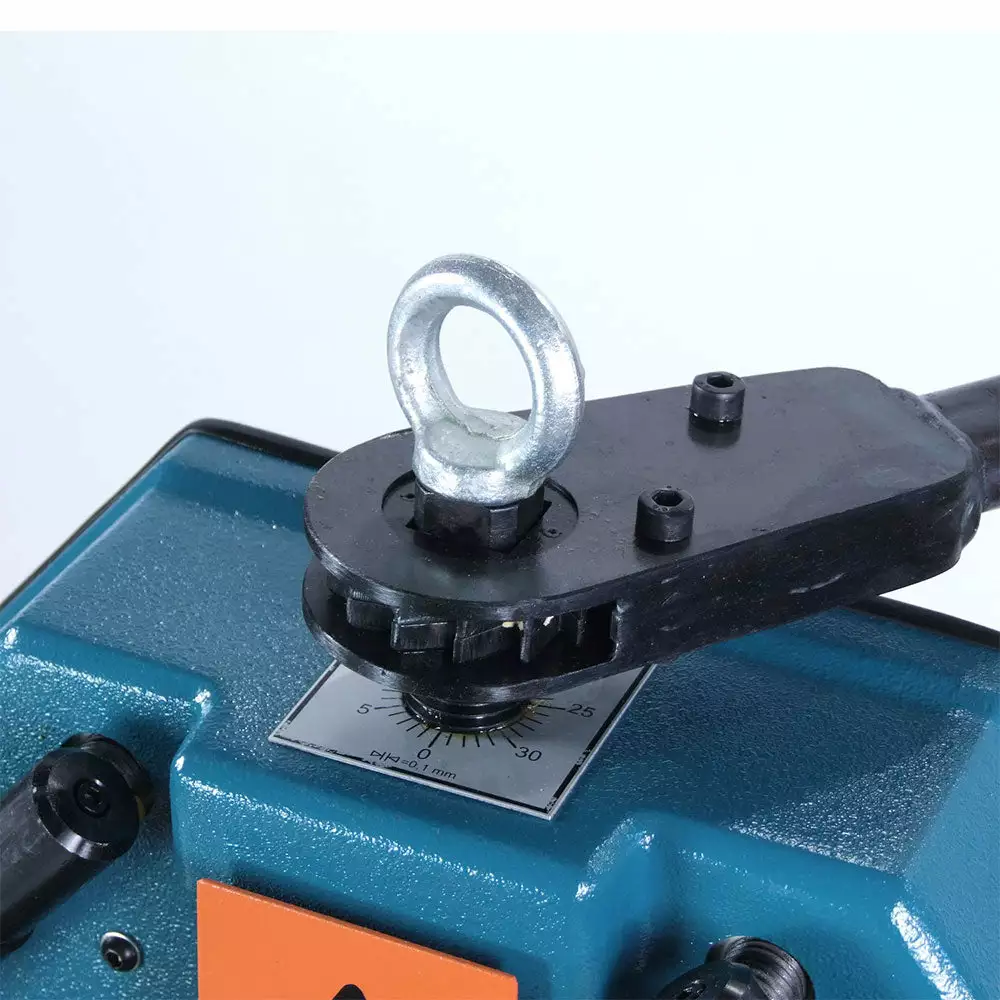

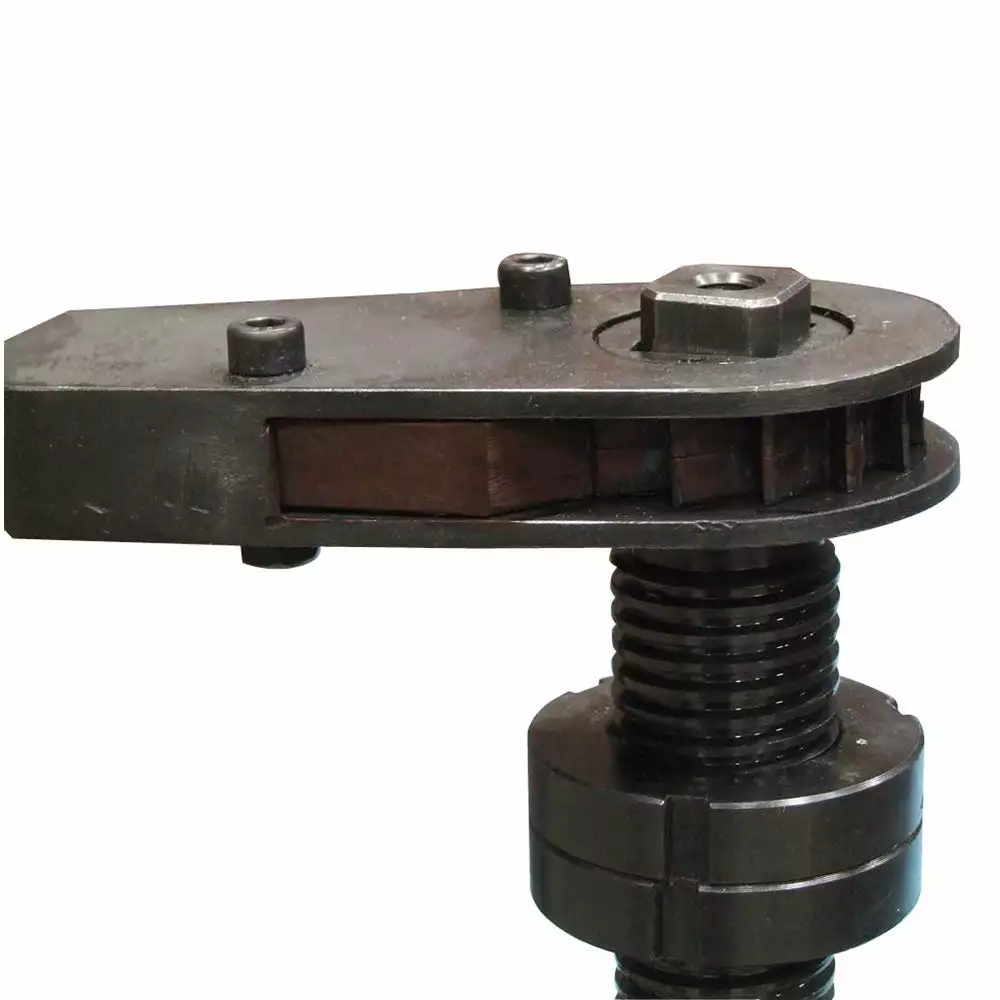

• Ratchet-style manual top shaft allows you to adjust forming pressure.

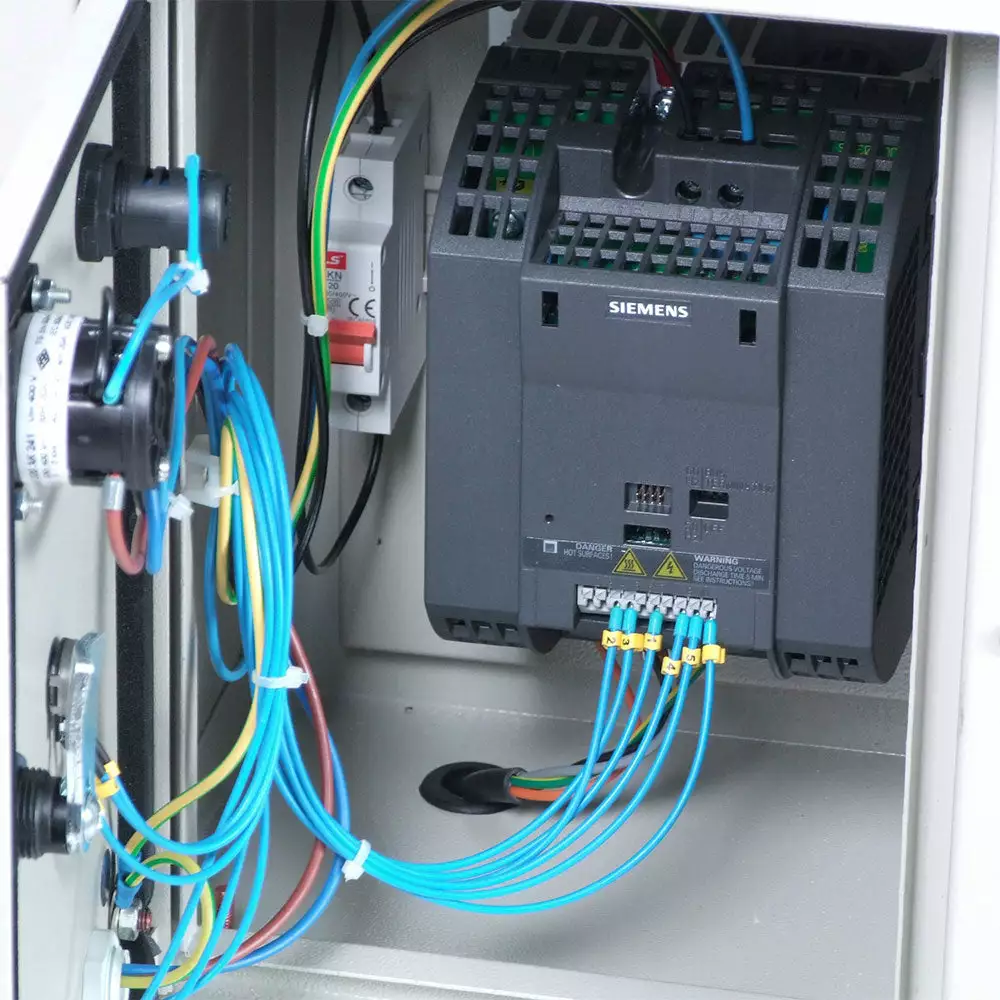

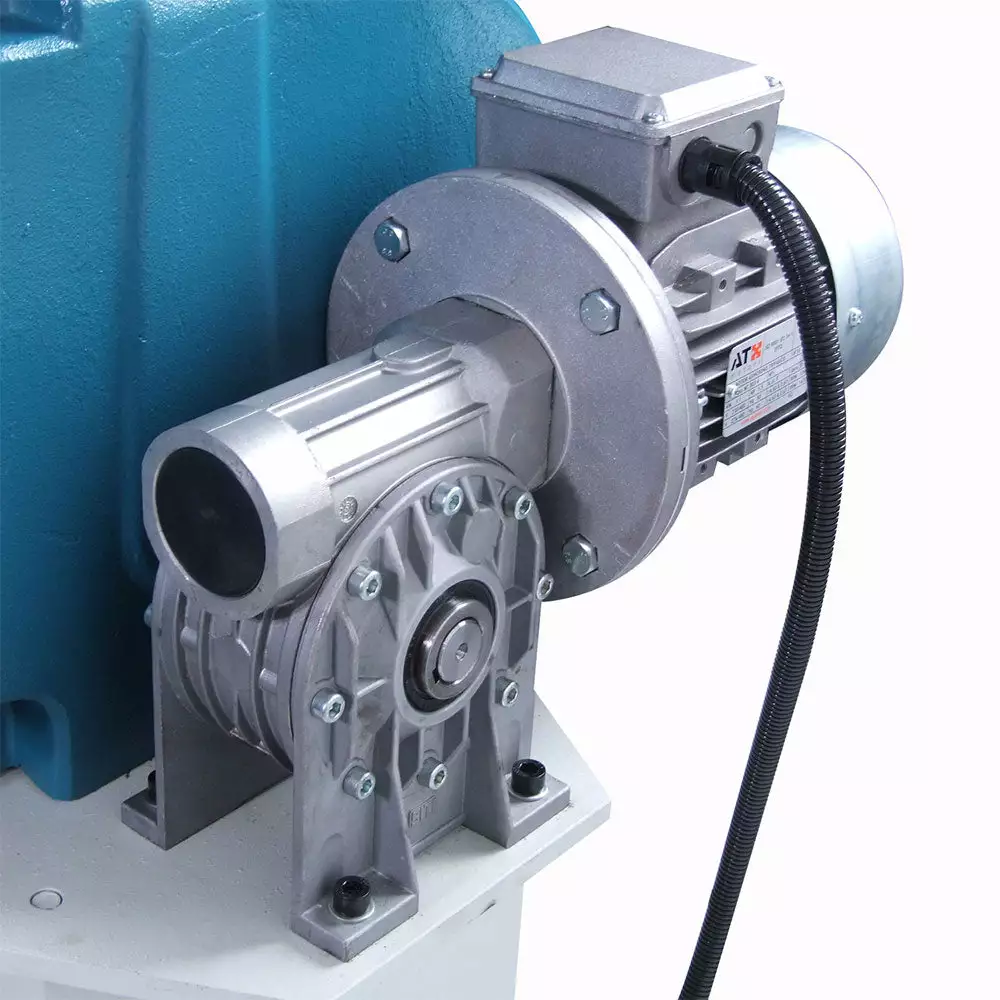

• Variable-speed inverter drives and industrial-grade transmission provide delicate control over material.

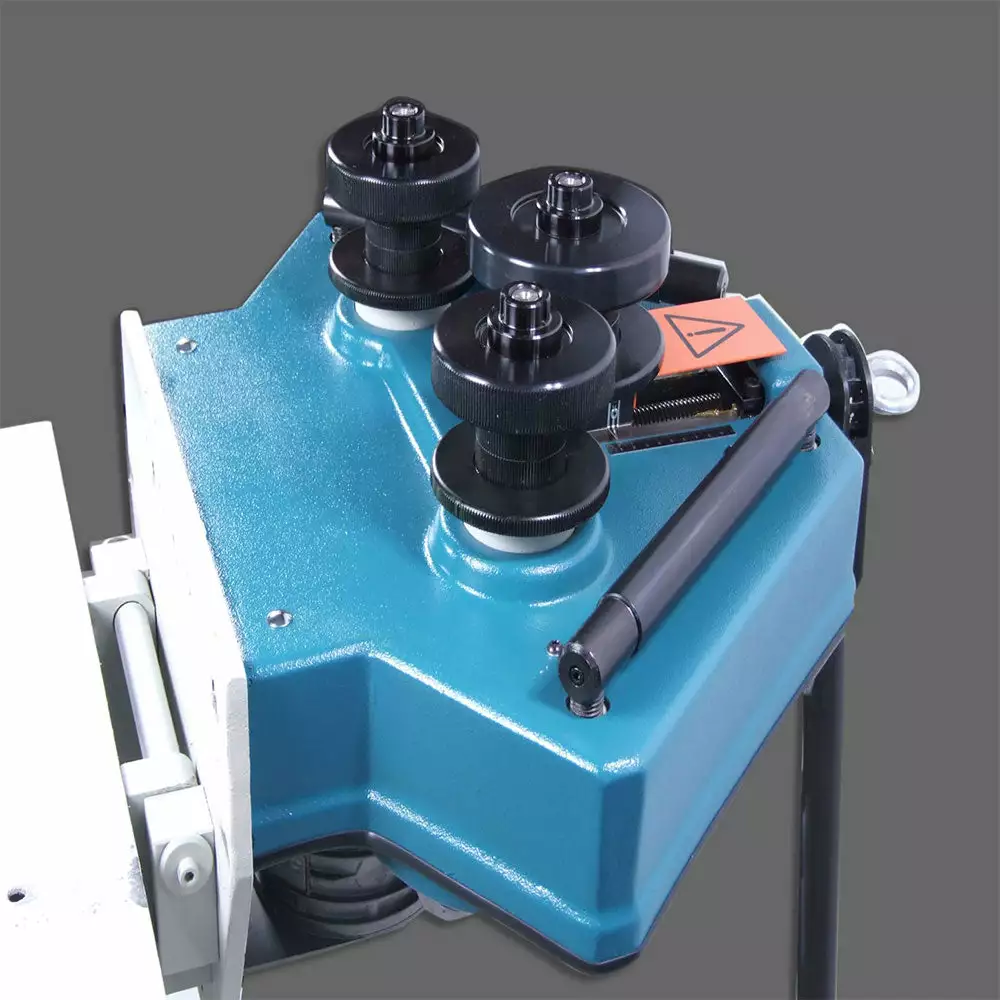

• Executes bends in upright or horizontal positions, to accommodate a range of material lengths.
• Sturdy base opens into a storage cabinet for tooling and other options.

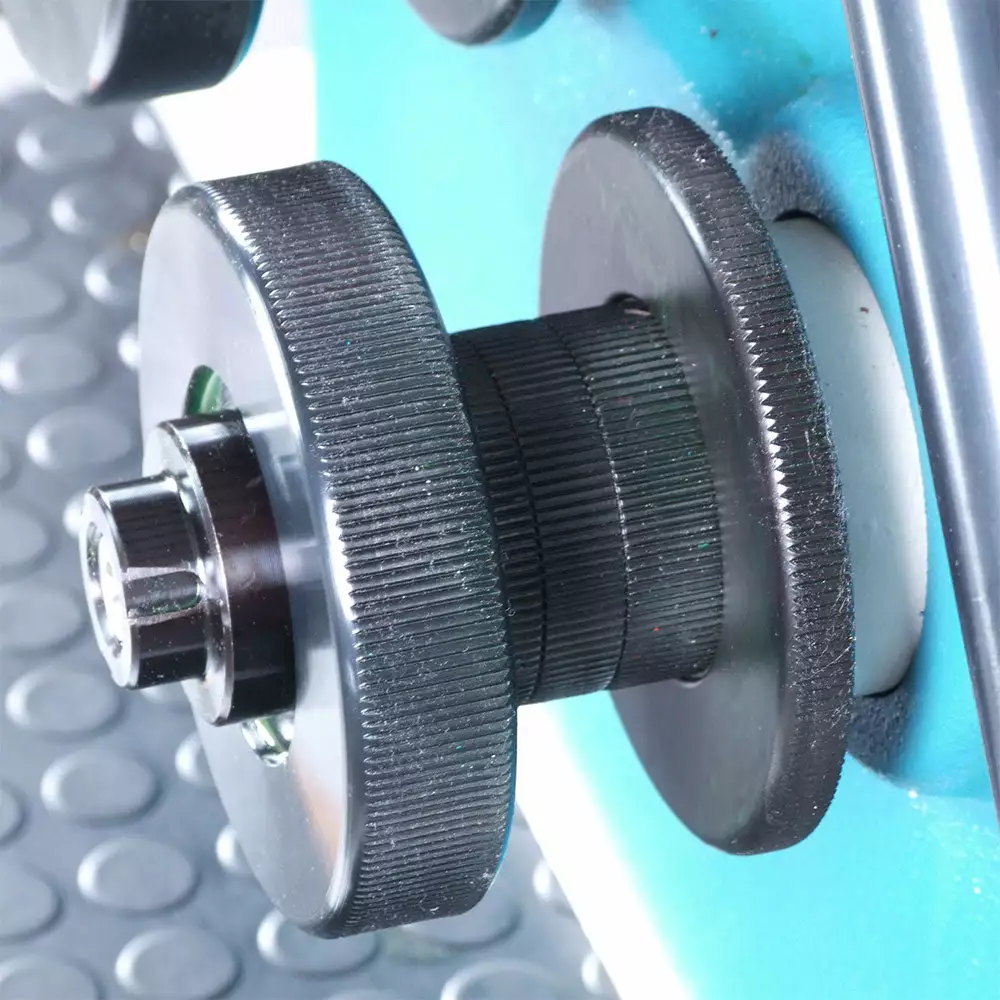

• Comes standard with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
• Manufactured from heavy steel plate to extend machine’s lifetime of use.

What’s in The Box

• R-M40 – Ring Roll Machine
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	R-M40
Power	220V Single Phase
Roll Adjustment	Manual
Pipe Capacity	Size: 1.5″ (sch. 40) / Min. Dia.: 28″
Round Tube Capacity	Size: 2″ (.078″) / Min. Dia.: 27.55″
Square Tube Capacity	Size: 1.5″ (.078″) / Min. Dia.: 39″
Solid Round Capacity	Size: 1.375″ / Min. Dia.: 24″
Flat Bar Easy Way	Size: 3″ (.5″) / Min. Dia.: 15.75″
Flat Bar Hard Way	Size: 2.25″ (.375″) / Min. Dia.: 20″
Angle Iron Capacity	Size: 1.5″ (.157″) / Min. Dia.: 22″
Shaft Diameter	1.181″
Shaft Center Distance Lower Rolls	10.88″
Lower Roll Dia.	5.118″
Pinch	Single
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches)	60x44x77
Weight	550 lbs
