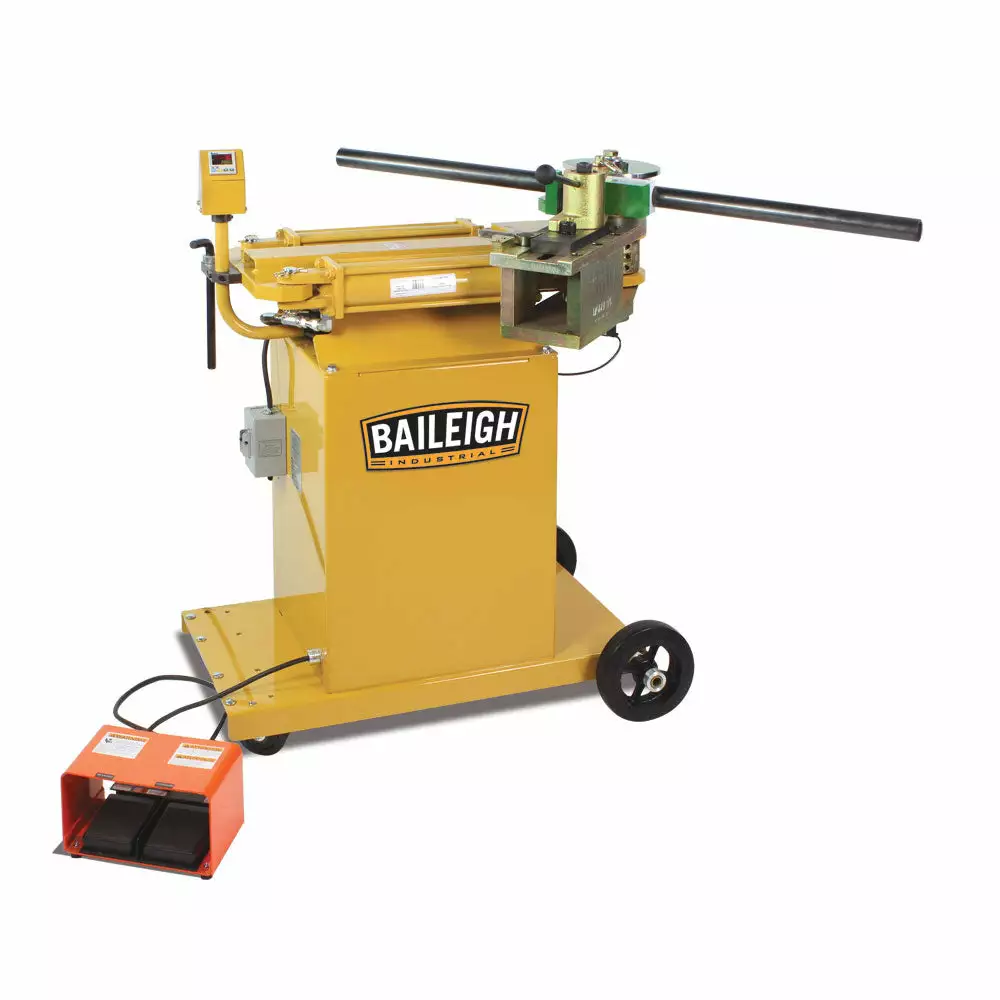

Baileigh 1006785 RDB-175 110V Hydraulic Tube Bender

Features

• Maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel.
• Rotary draw executes 180° bends in a smooth single motion.
• Bends almost 300% faster than the RDB-150, making quick work of round tube, pipe, and square tubing.
• Auto-stop programming lets you achieve the desired bend angle without worrying about accuracy.
• Easy-to-read digital degree indicator to monitor bend progress and check angles.

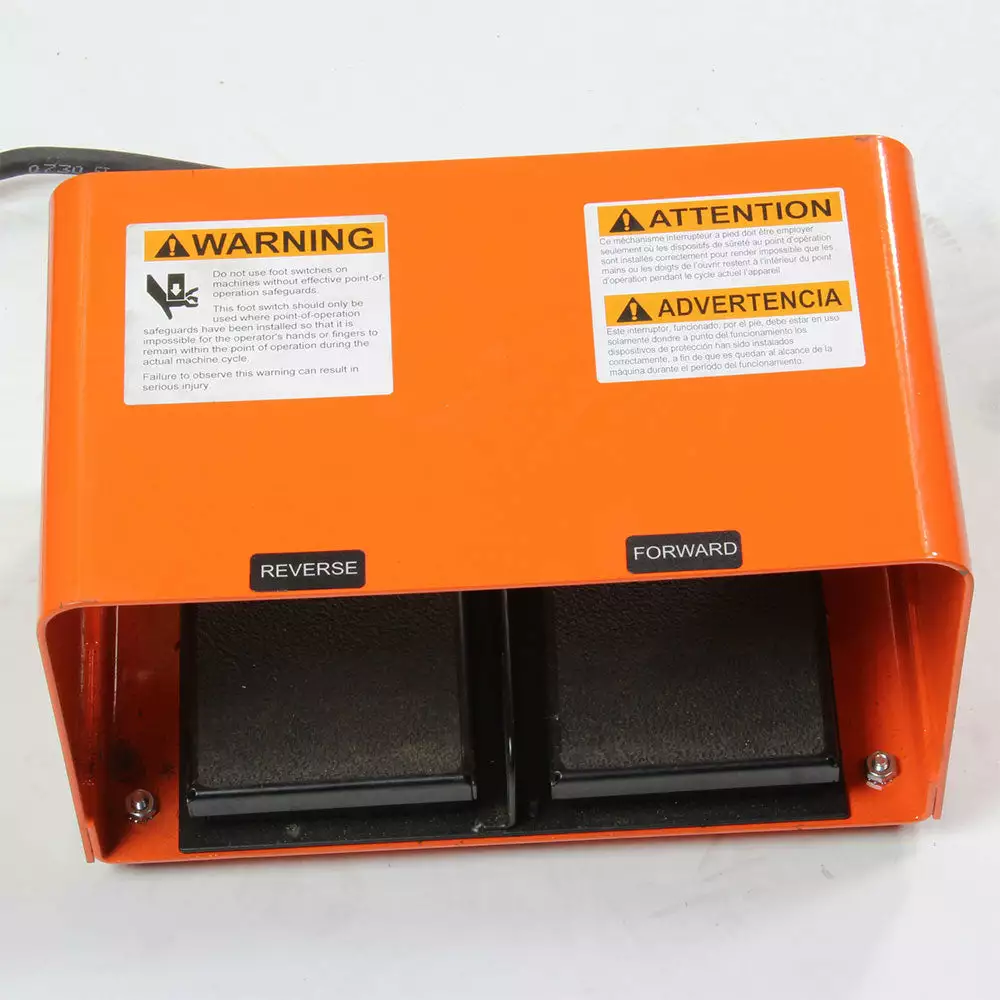

• Convenient foot pedal controls the movements of the bender, leaving your hands free to guide the material.
• Works with up to a 9’’ centerline radius to accommodate 90% of applications.

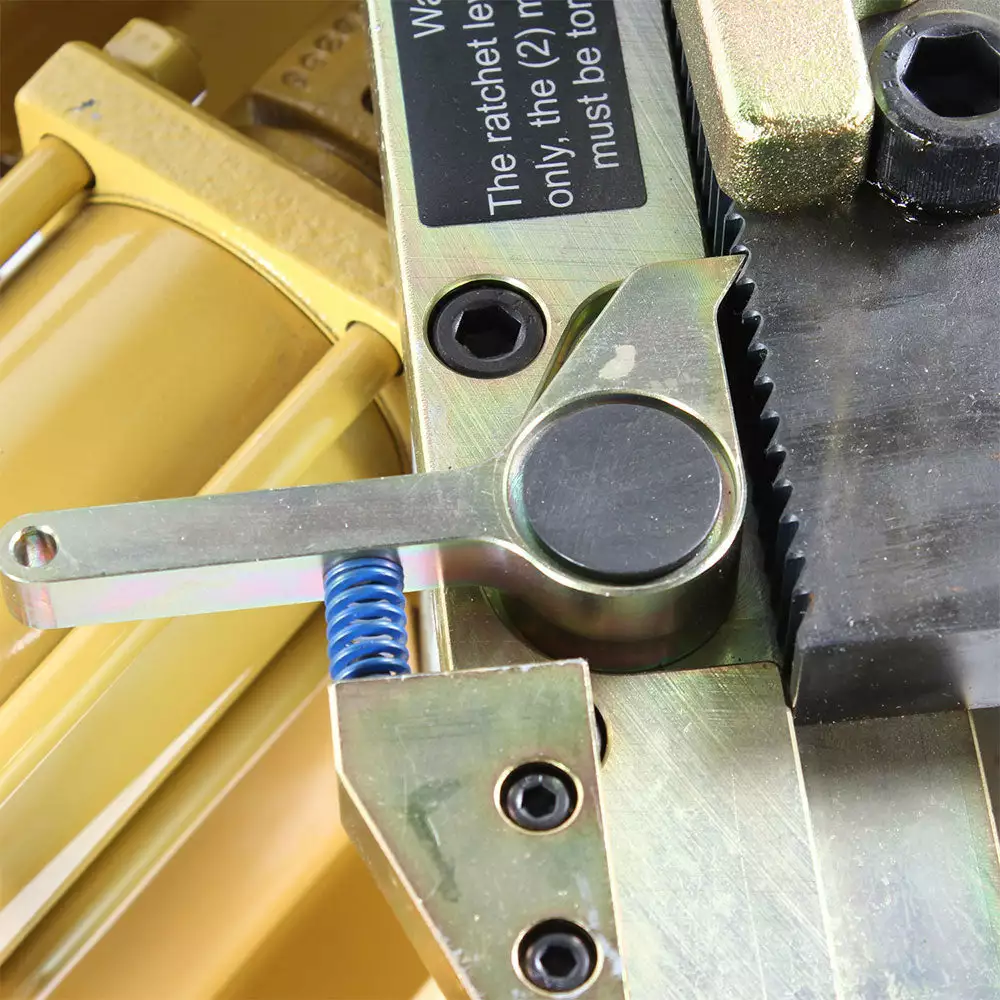

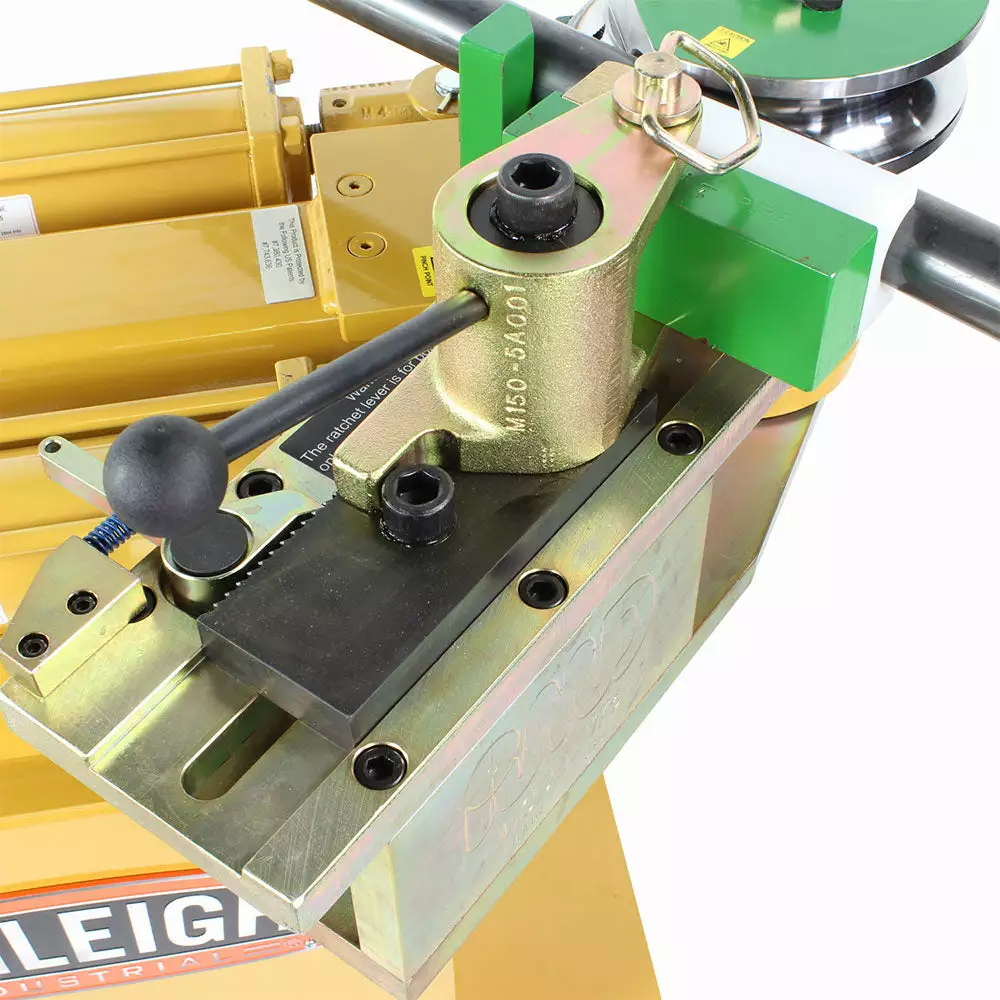

• Ratcheting counter die adjustment allows for quick tooling changes.
• No valves on top, leaving plenty of open space for complex bends.

What’s in The Box

• RDB-175 – Tube Bender
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	RDB-175
Power	110V
Country of Manufacture	United States
Minimum CLR	.5″
Minimum OD	.25″
Mild Steel Solid Rod	1″
Mild Steel Pipe Schedule 40	2″
Mild Steel Round Tube Wall	2.5″ (.125)
Mild Steel Square Tube (Wall)	2″ (.125)
Stainless Steel Pipe Schedule 40	1.5″
Stainless Steel Round Tube Wall	2.375″ (.125)
Chromolly Round Tube Wall	2″ (.125)
Aluminum Round Tube Wall	2.5″ (.156)
Maximum Center Line Radius Clr	9″
Special Notes	Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
Things to Know Before Purchase	All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Dimensions (Inches)	60x44x77
Weight	700 lbs
