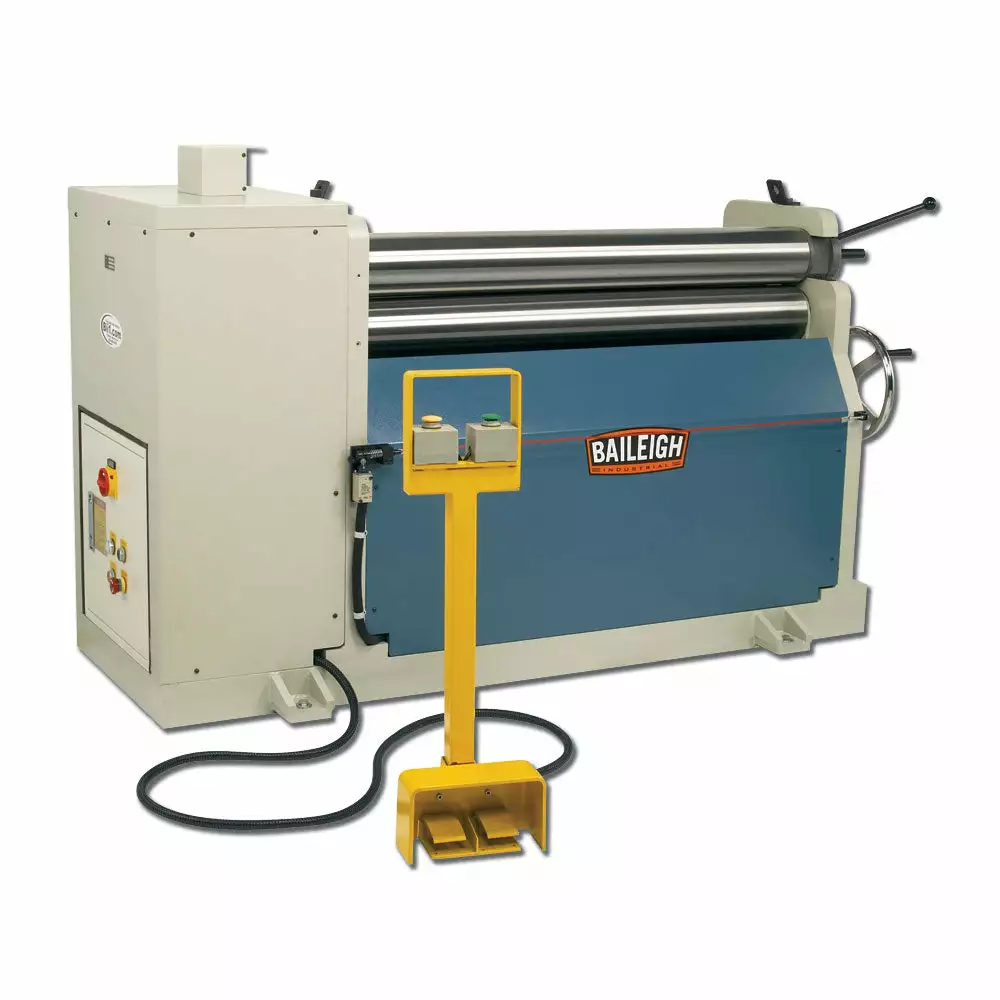

Baileigh 1006481 PR-403 220V Hydraulic Plate Roll W/ 4′ X 1/4″ Capacity

Features

• 4’ forming width.
• 3 gauge (¼”) mild sheet steel capacity.
• 3 hp motor runs on 220-volt 3-phase power.
• Large planetary gearbox, connected to main motor, drives the top and bottom rolls.

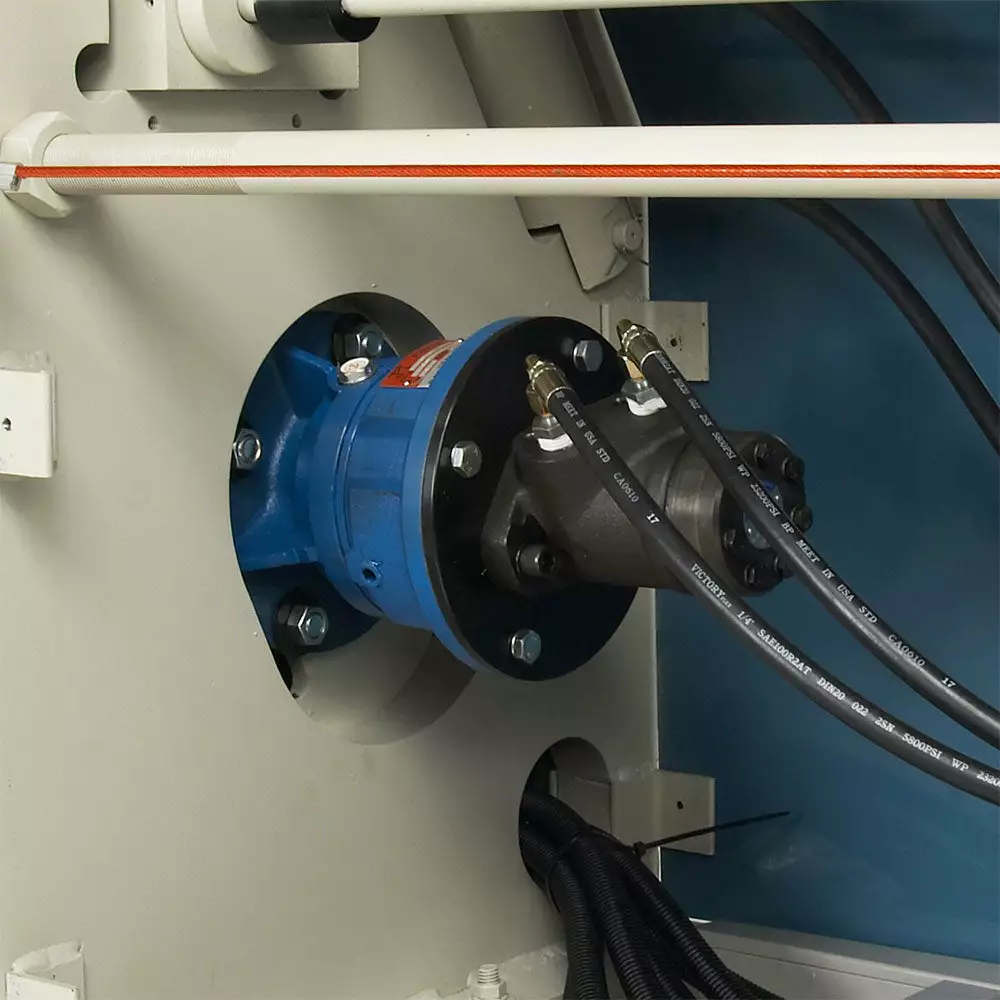

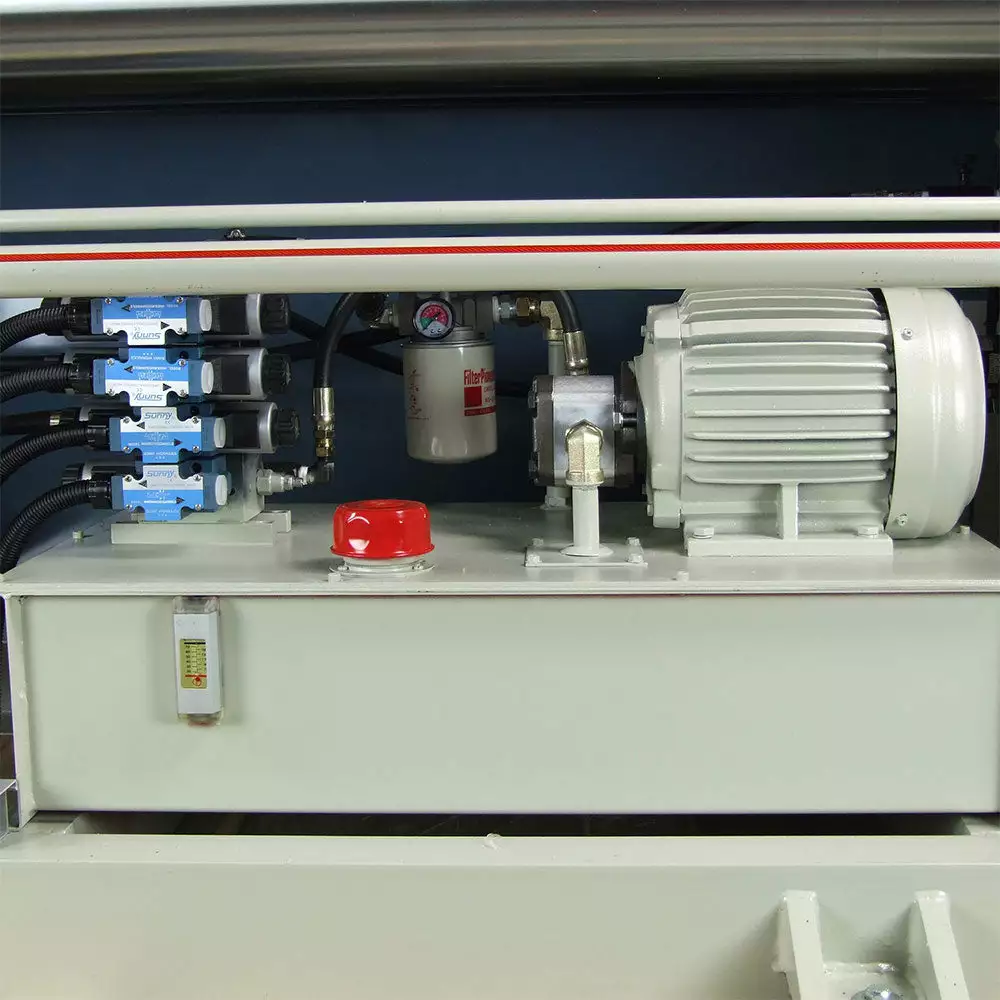

• Industrial-grade hydraulic system drives all 3 rolls.

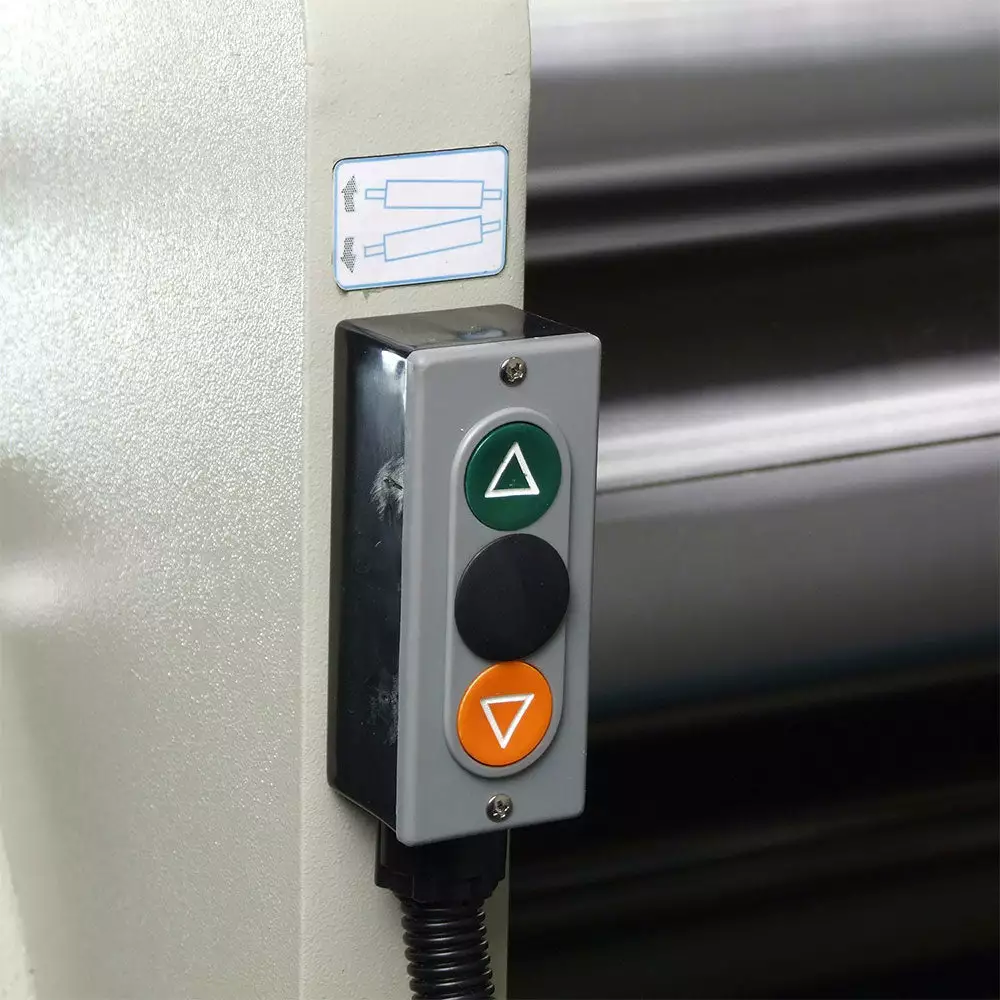

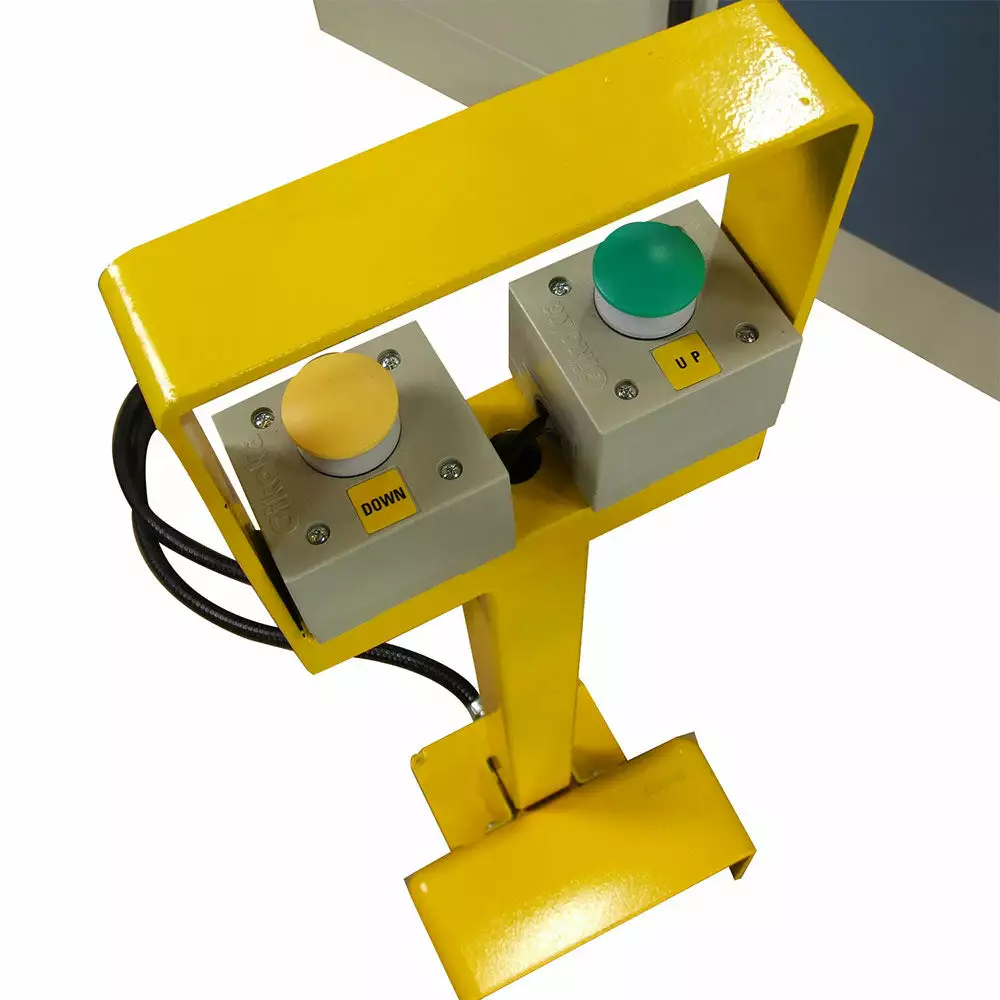

• Movable control pedestal includes foot pedals to run the rolling and buttons to move the forming roll up and down.

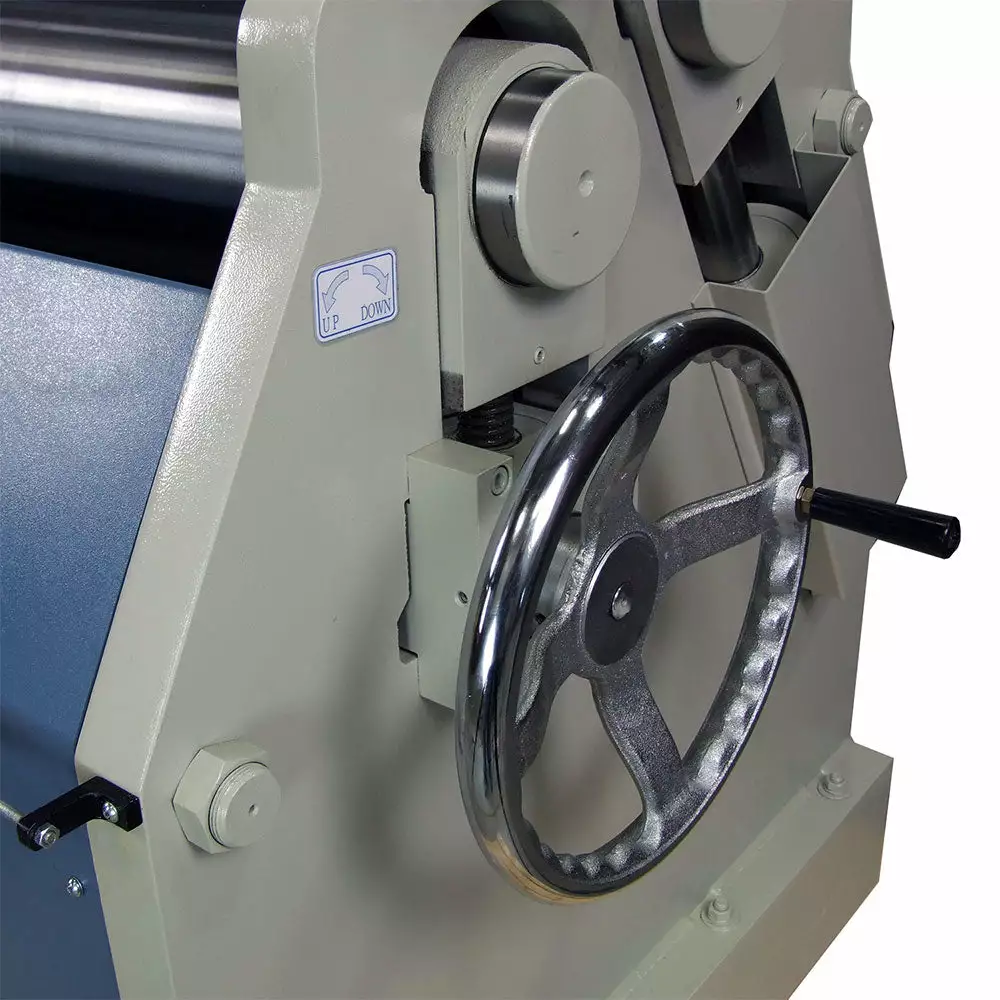

• Easy to operate: insert material, turn the handwheel to bring up the pinch roll, then use the foot pedals to start rolling.
• Just flip a switch to bring the back roll up at an angle for coning.

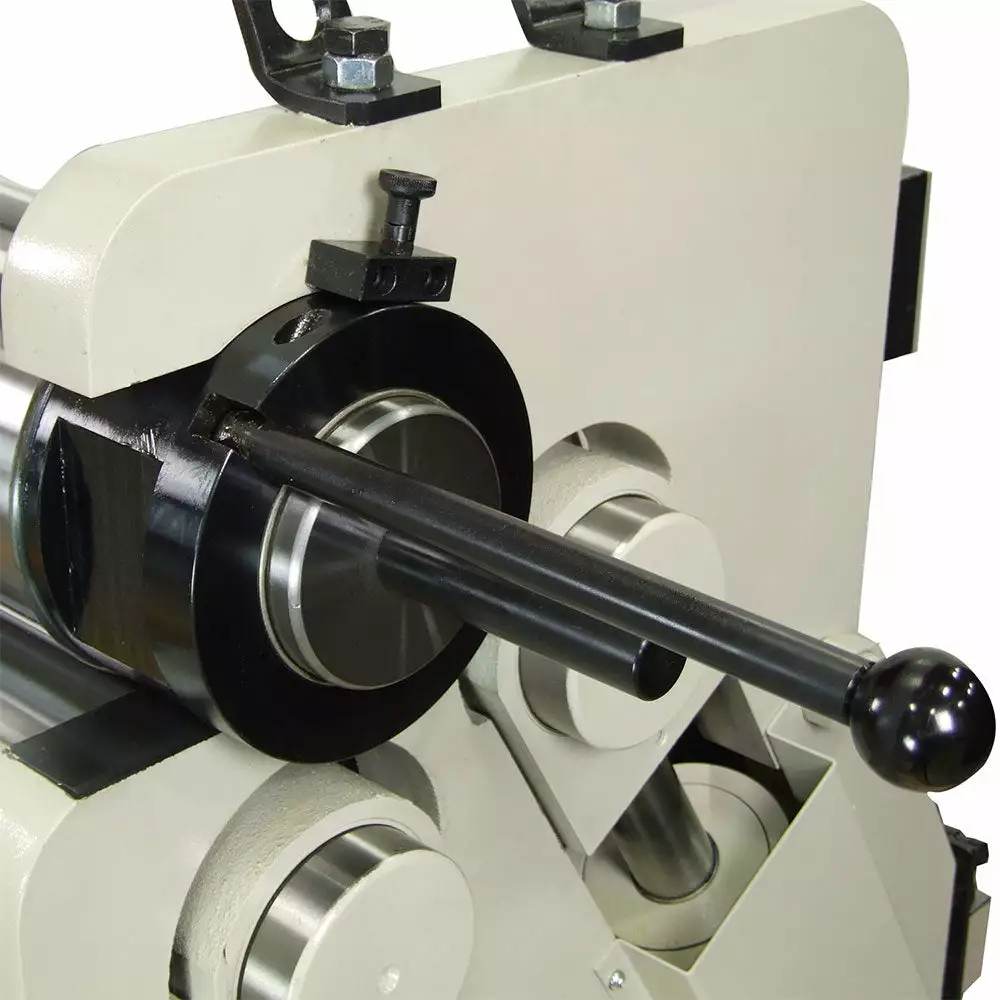

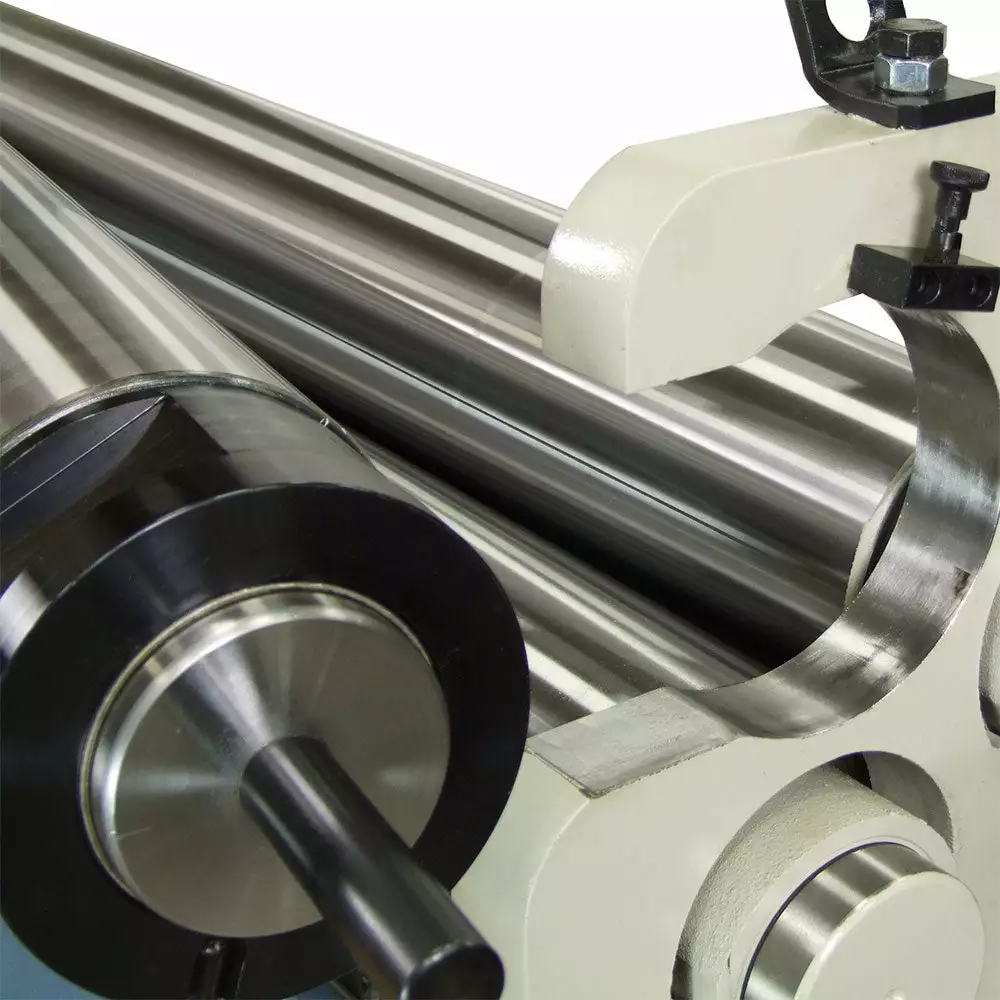

• Quick-release mechanism on the top roll makes it easy to slide off the finished work.

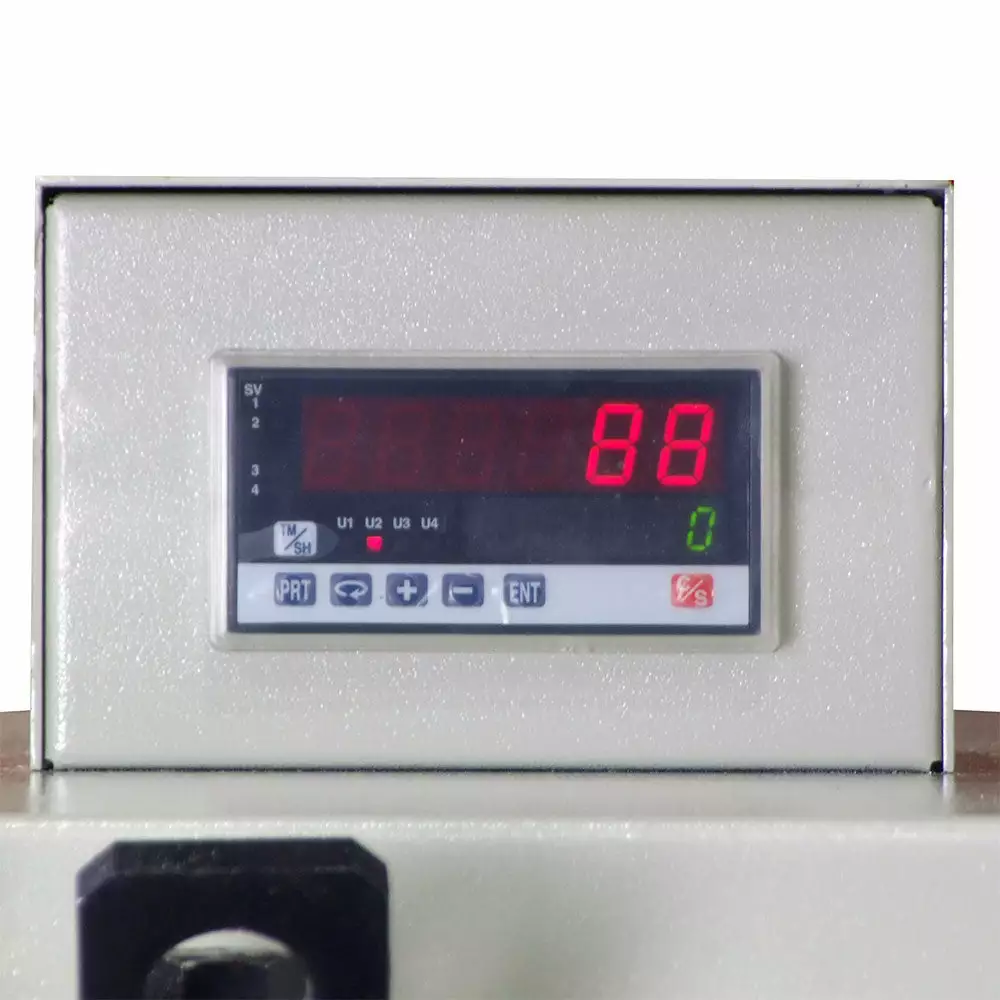

• Digital readout tracks the position of the back roll so you can make repeatable bends.
• Robust welded steel frame maintains accuracy and rigidity by keeping the rolls in alignment.

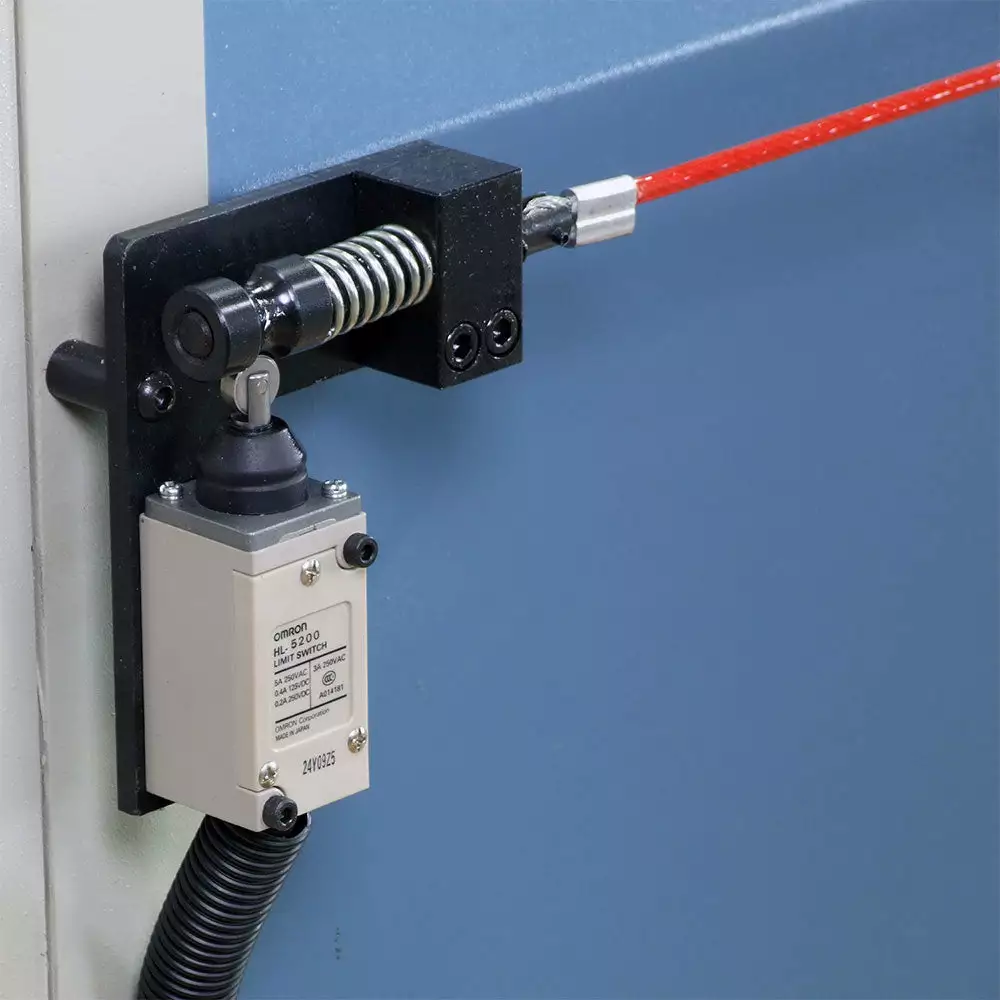

• Dual emergency stop cables are located on the front and back of the machine for your safety.
• Covered by a 1-year parts warranty.

What’s in The Box

• TN-250 – Tube Notcher
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	PR-403
Power	220V / 3-phase
Motor	3 hp
Forming Width	48″
Roll Speed	4.67 rpm.
Upper Roll Dia.	5.91″
Roll Adjustment Back	Hydraulic
Minimum Forming Dia	8.86″
Included Accesories	Included Accesories
Dimensions (Inches)	98 x 43 x 58
Weight	4200 lbs
