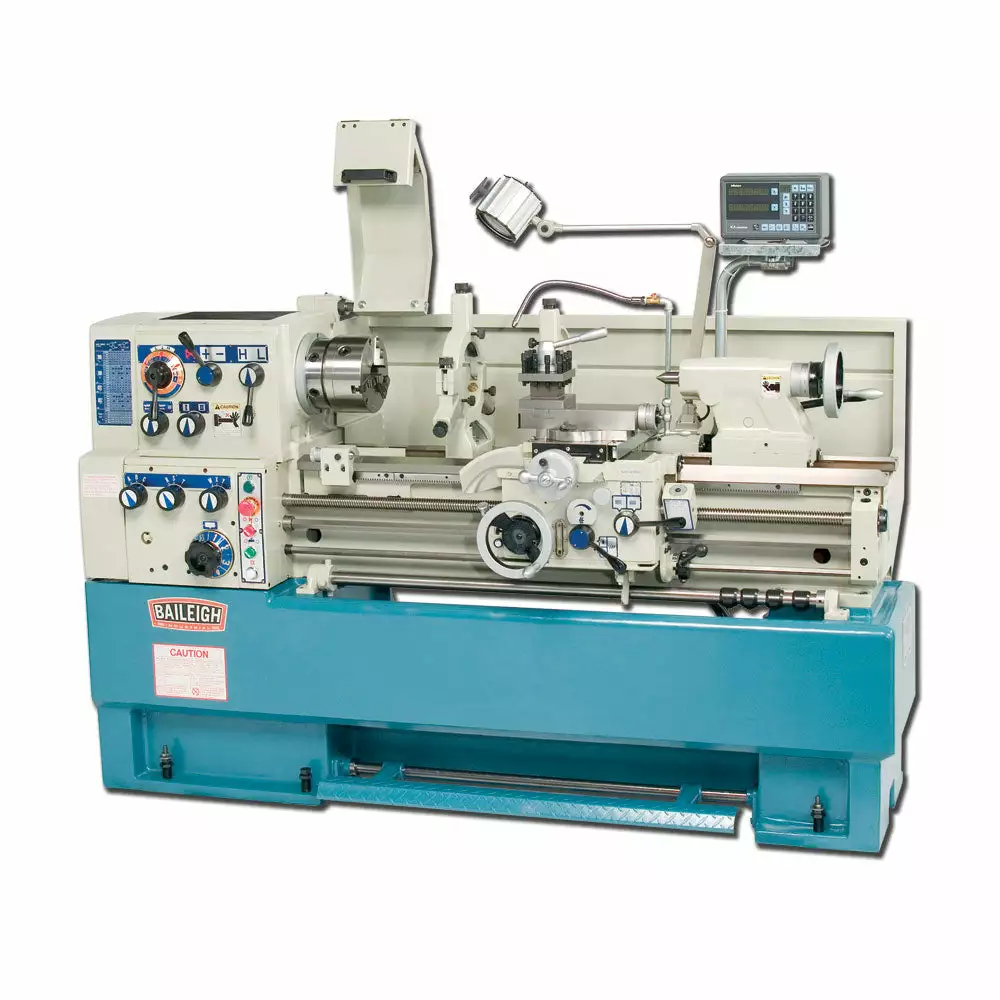

Baileigh 1006140 PL-1640 220V 7.5HP Precision Lathe W/ Cast Iron Base

$90.99

SKU: lathes-6854772261000 Categories: Lathes, Power Tools, Tools & Equipment Tags: 220v, Corded, Dropship, LTL, Tools & Equipment

Fast, friendly, always here to help.
Sustainable materials, for a better tomorrow.
Nature-friendly materials, for a better planet.
Control the delivery date and try to deliver it in the fastest time

Description
Reviews (0)

Features

12 speeds from 30 to 2,000 rpm.
7.5 hp motor runs on 220-volt 3-phase power.
No assembly required.
Factory-installed Mitutoyo DRO (digital readout) helps you make precise cuts.
Precision ground and hardened ways will withstand years of use in any metalworking shop.
?” square indexing tool post.
Collar system lets you set stops for repeat parts.
This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter.
Full cast iron base, integrated into the mainframe, makes this one of the most rigid lathes on the market.
Comes standard with:
3-jaw chuck.
Headstock chuck guard with automatic safety switch.
Steady rest and follow rest.
Emergency foot brake.
Flood coolant system (with backsplash guard) to prolong machine life.
Halogen work light.
Covered by a 1-year parts warranty.

What’s in The Box

PL-1640 – Precision Lathe
Owner’s Manual

Warranty

1 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	PL-1640
Power	220V / 3-phase
Speed	30 – 2000 rpm
Spindle Bore	2.0625″
Threads Diametrical Qty Speed	32 / 4–32 D.P.
Threads Imperial Qty Speed	40 / 2–56 T.P.I.
Threads Metric Qty Speed	53 / .4–14 mm pitch
Threads Module Qty Speed	44 / .4–7 M.P.
Spindle Taper Sleeve	Morse #4
Spindle Taper Nose	Morse #6
Tailstock Quill Dia	2.125″
Tailstock Quill Taper	Morse #4
Tailstock Quill Travel	4.75″
Compound Rest Width	4.33″
Center Height	7.086″
Compound Travel	4.75″
Bed Height	12.20″
Bed Length	17157
Bed Width	11.81″
Longitudinal Feeds Metric Qty Speed	40 / .032 – .640 mm / rev.
Main Motor	7.5 hp
Longitudinal Feeds Imperial Qty Speed	40 / .0012″ – .0252″ / rev.
Lead Screw Diameter	1.25″
Lead Screw Thread Pitch	4 T.P.I.
Max. Swing In Gap Length	6.125″
Max. Swing Over Bed	16″
Max. Swing Over Cross Slide	9.45″
Max. Swing In Gap Dia	23.42″
Cross Feeds Imperial Qty Speed	40 / .0006″ – .0126″ / rev.
Cross Feeds Metric Qty Speed	40 / .015 – .320 mm / rev.
Cross Slide Travel	9″
Cross Slide Width	7.08″
Cutting Tool Max Section	.625″ x .625″
Distance Between Centers	40″
Feed Rod	.708 dia.
Shipping Dimensions (Inches)	90x37x81
Weight	3940 lbs
