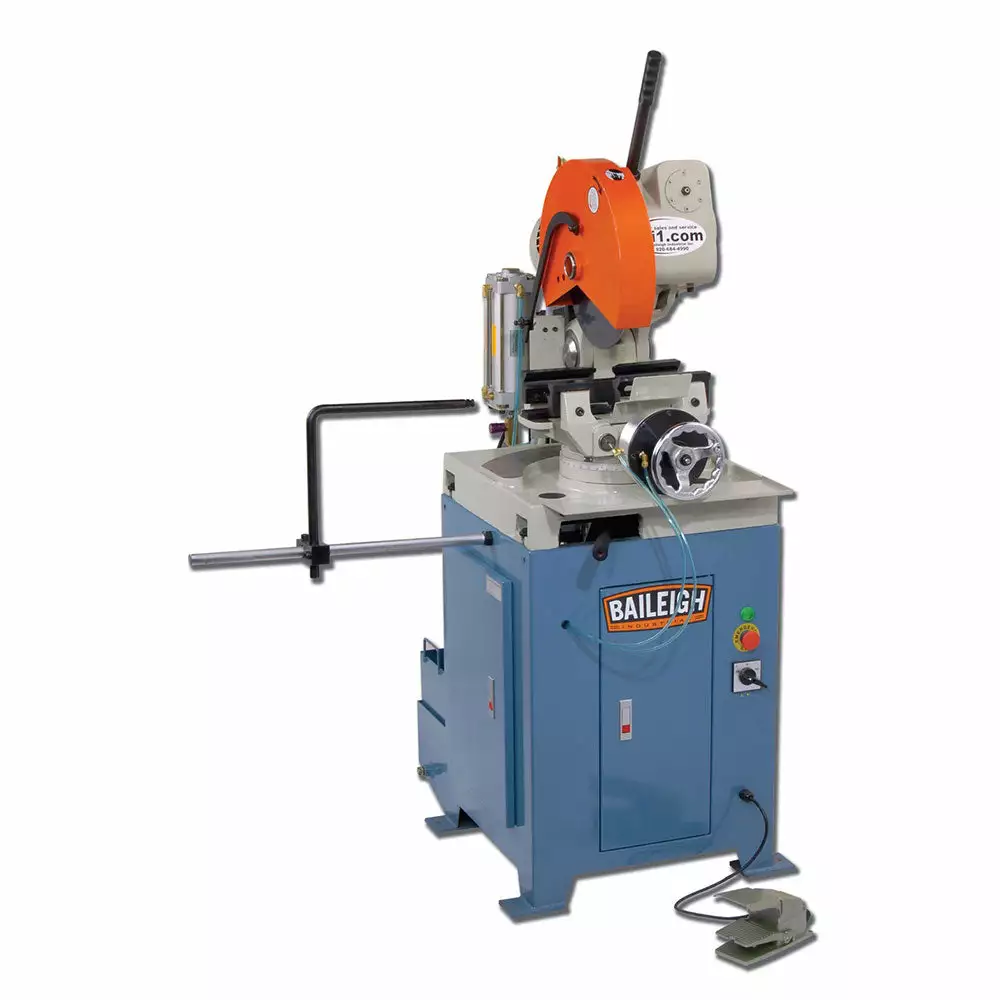

Baileigh 1002578 CS-350SA 14″ Semi-Automatic Cut Off Saw W/ Cast Iron Head Tools & Equipment

Features

• Accepts a massive 14” blade.
• 4.33” round tube capacity at 90°.
• You can switch between 2 speeds, 26 and 52 rpm, depending on your material.
• 4 hp motor runs the direct-drive blade and requires 220-volt 3-phase power.
• Miters 45° right and 90° left, which is important if you have any slotting applications.
• Rigid cast iron head minimizes vibrations so that the blade gives you high-quality cuts—and will for many years to come.
• Ground and hardened all-metal gears in blade head ensure tight tolerances throughout the life of the saw.
• Backlash adjustment allows you to tighten the gears when needed and keep the saw accurate.
• Design adds semi-automatic features to our manual CS-350M, which has proven itself one of the best production saws available.
• Semi-automatic system is simple to operate.
• Simply put the material in the vise and push the foot pedal down. The saw handles the rest.
• The blade starts, descends, cuts, and returns on its own. Once the cut is complete the blade will shut off and the head will raise back up.

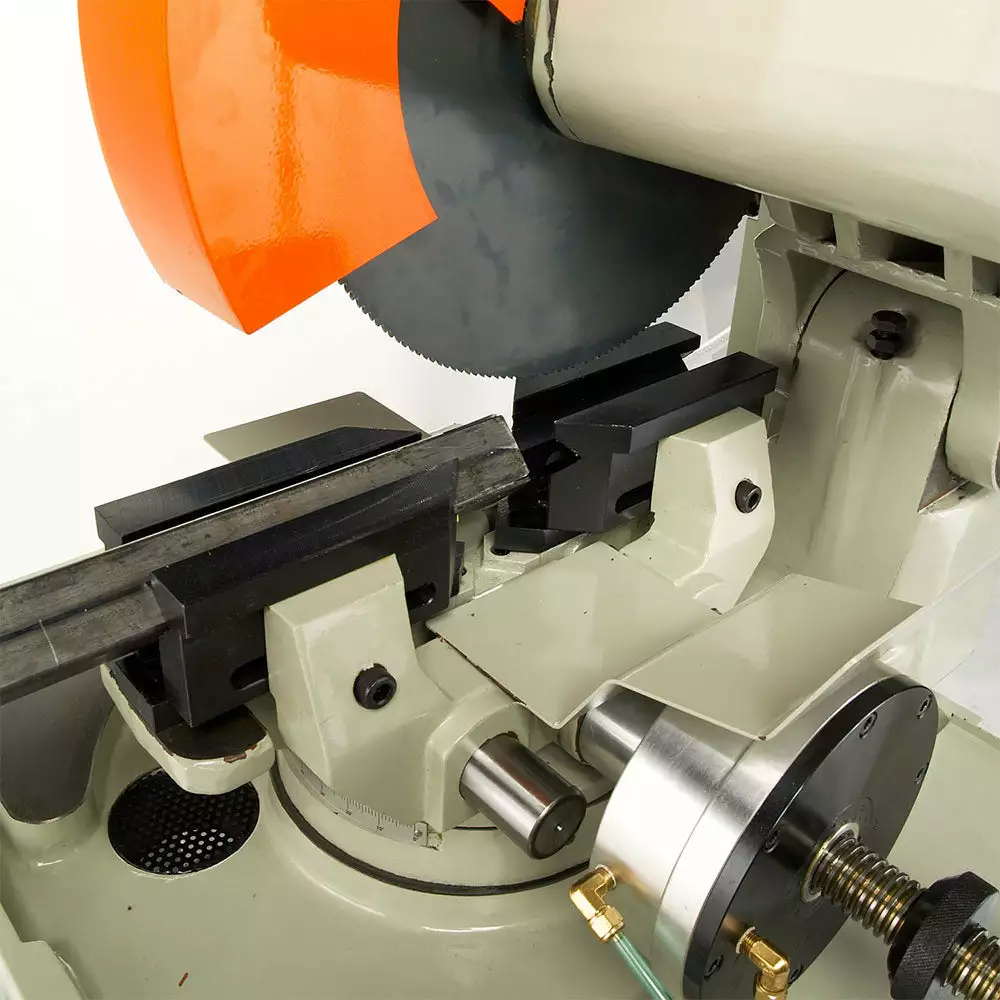

• Air-powered vise, controlled by the foot pedal, clamps the material with jaws on both sides.
• American-style vise is self-centering. It keeps the material in the right position for the blade, so you don’t have to worry about different material diameters.
• Steel stop rod allows you to cut repeatable lengths conveniently.
• Rigid cast iron saw base maintains accuracy and high cut quality by preventing the blade from wobbling.
• Durable folded steel stand puts the machine at a comfortable working height.
• Flood coolant system lubricates the blade and helps it deliver clean, precise cuts, like only a cold saw can.
• Integrated coolant system makes blades longer, so you spend less on replacements. It also prolongs the lifespan of saw itself.
• This circular cold saw comes covered by a 1-year parts warranty.

What’s in The Box

• CS-350SA – Cut Off Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	CS-350SA
Power	220V / 3-phase
Max. Blade Diameter	14″
Operation	Semi-Automatic
Head Miter	45° Left / 45° Right
Round Solid at 45°	1.575″
Square Tube at 45°	2.953″ x 2.953″
Round Tube at 45°	2.953″
Rectangle Tube at 45°	2.953″ x 2.362″
Round Solid at 90°	2.362″
Rectangle Tube at 90°	4.25″ x 3.5″
Square Tube at 90°	4.25″ x 4.25″
Round Tube at 90°	4.331″
Coolant System	Y
Slotting Capable	Yes, Left and Right
Vice Style	Dual Action, Self Centering
Max. Vice Opening	6″
Head Style	Pivot
Arbor Size	1.26″
Shear Capacity Plate	.393 “
Motor	3.0 / 4.0 hp
Blade Size	14″
Blade Speed	Two Speeds, 26 / 52 (rpm)
Shipping Dimensions (Inches)	60x44x77
Weight	900 lbs
