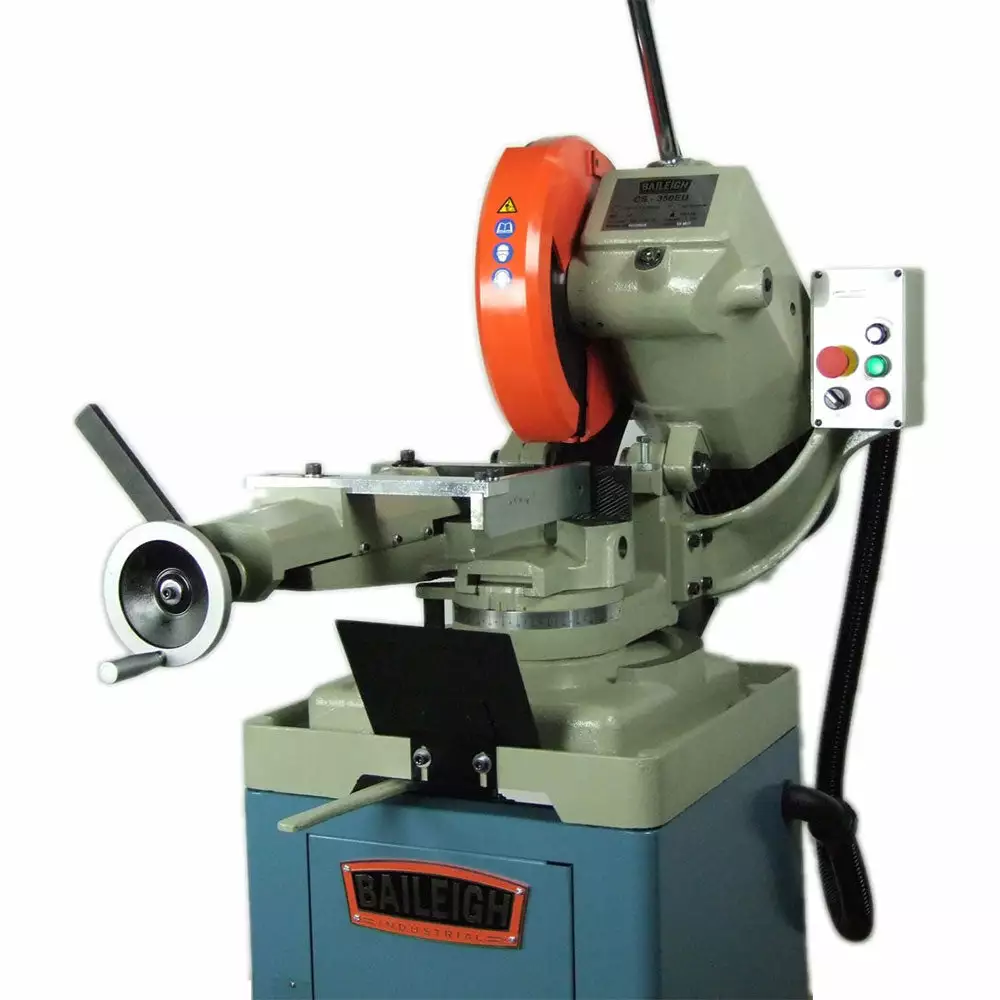

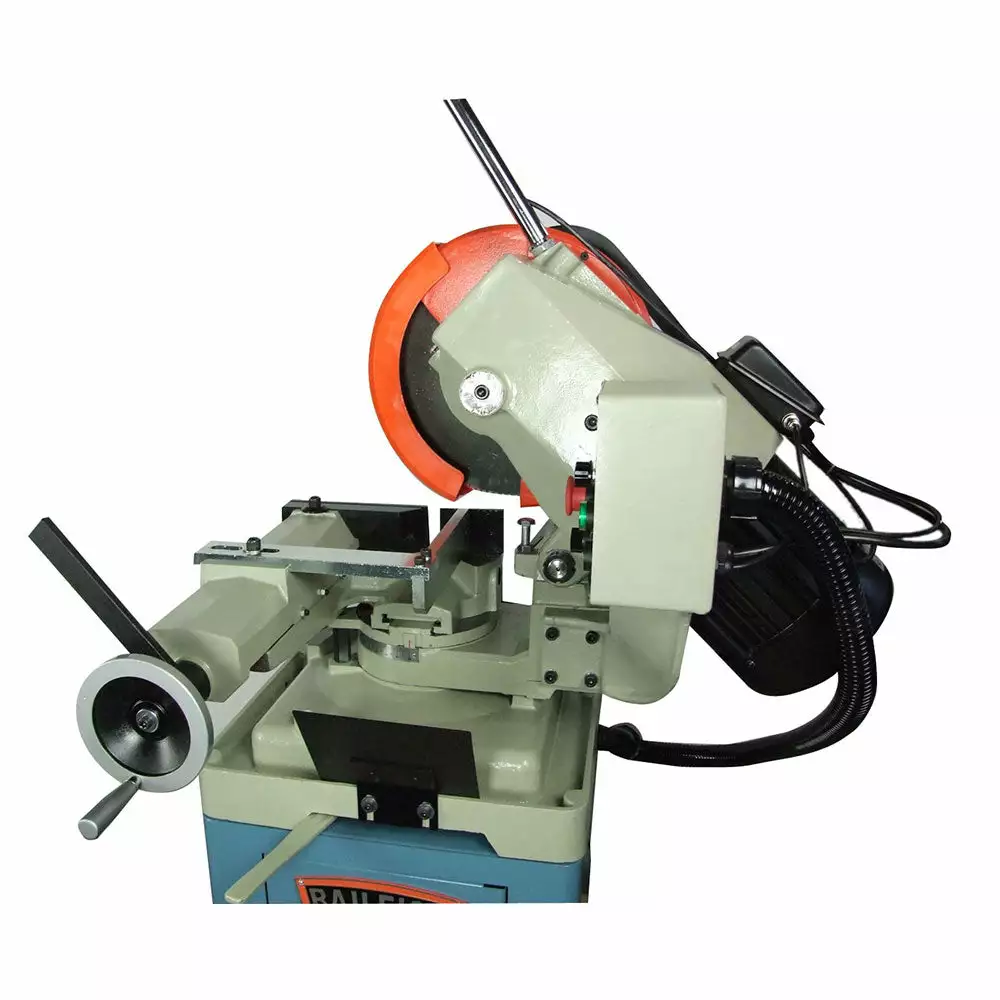

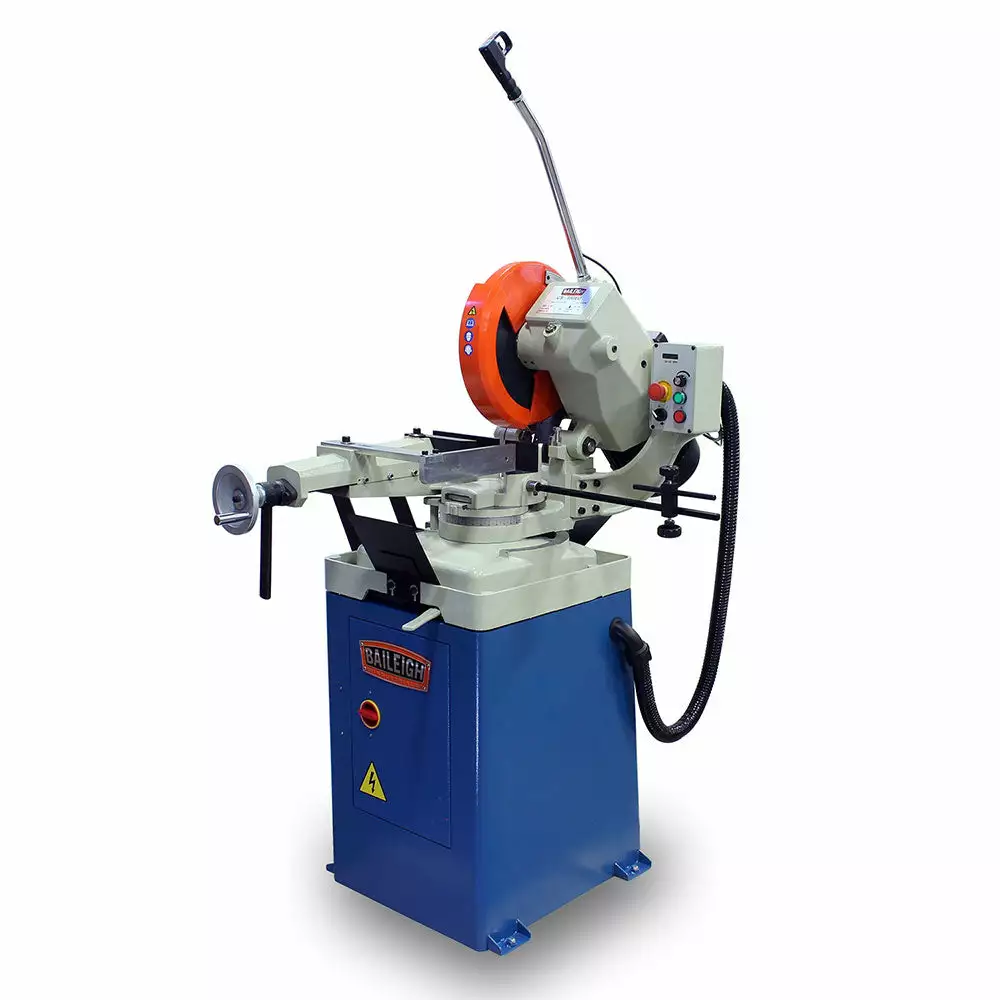

Baileigh 1002535 CS-350EU 14″ Variable Speed Circular Cold Saw Tools & Equipment

Features

• Circular cold saw takes a 14” blade (included).
• 4.7” round tube capacity at 90°.
• Cold saw machine cuts through solids, tubing, and pipe.

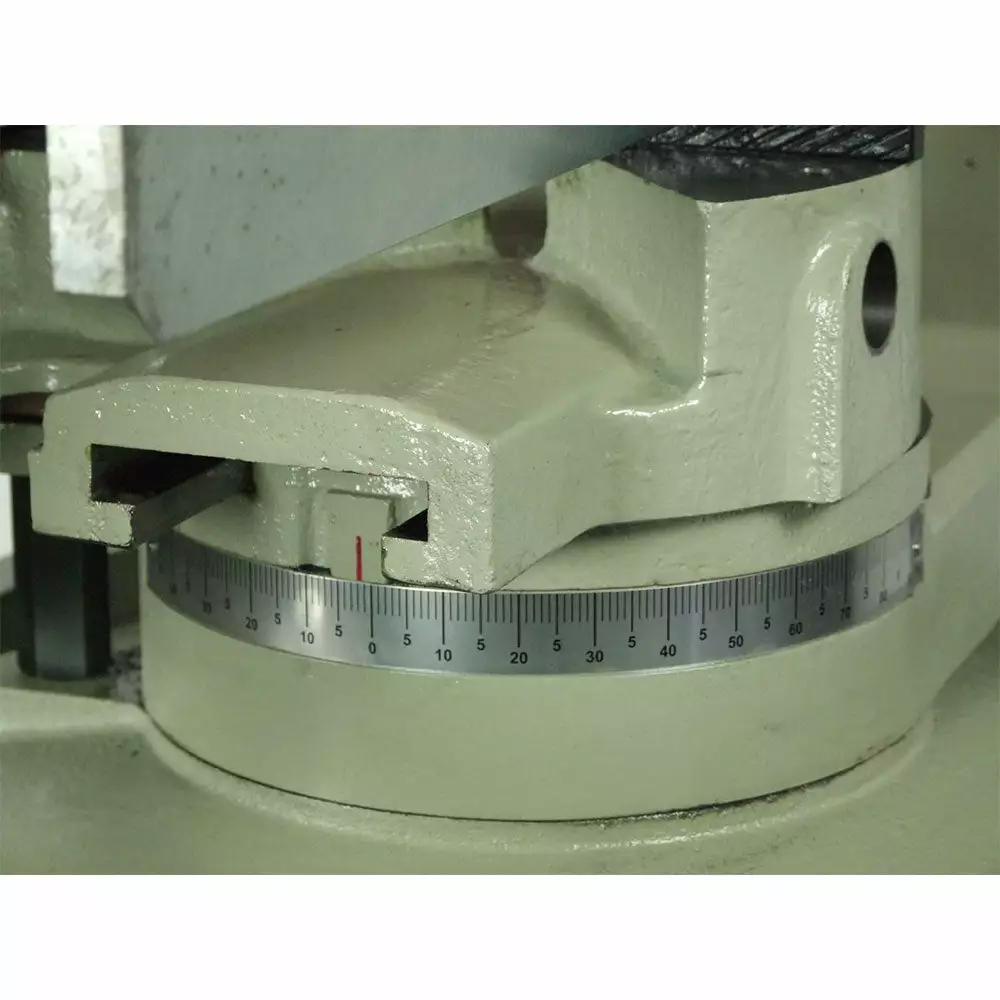

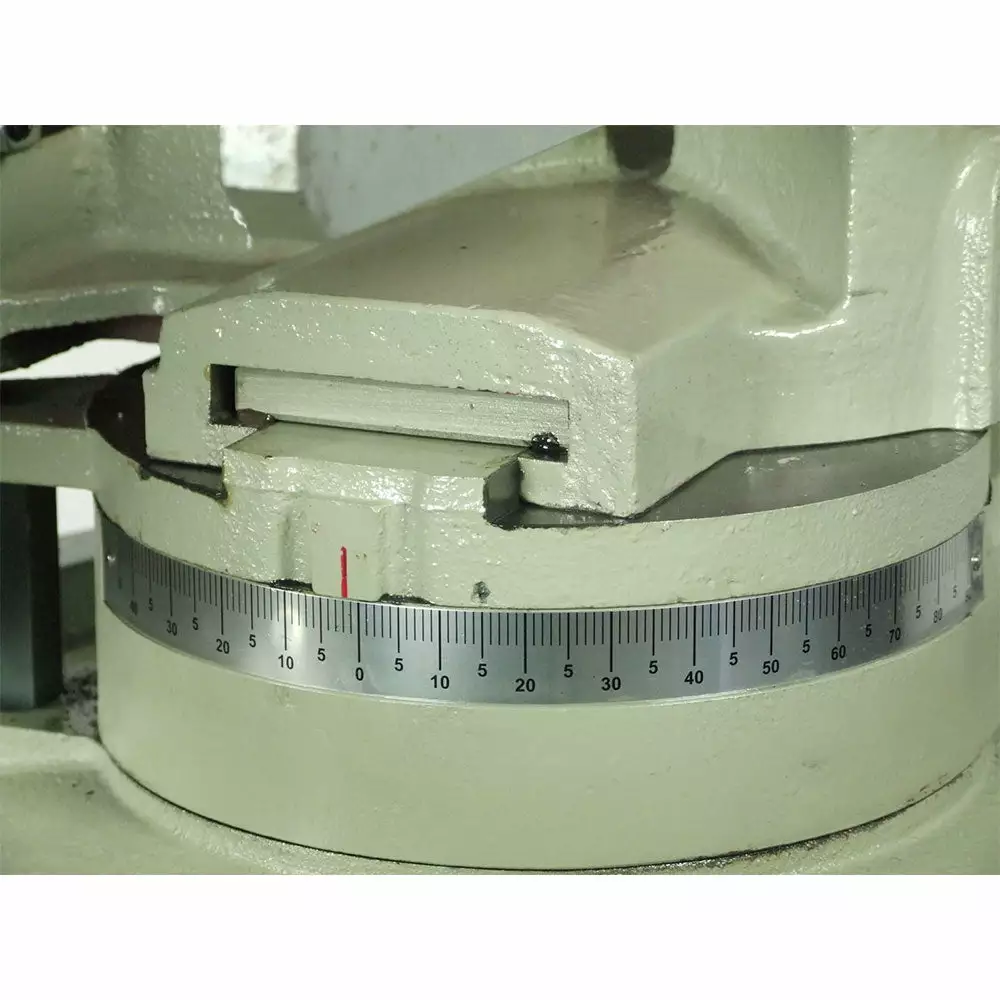

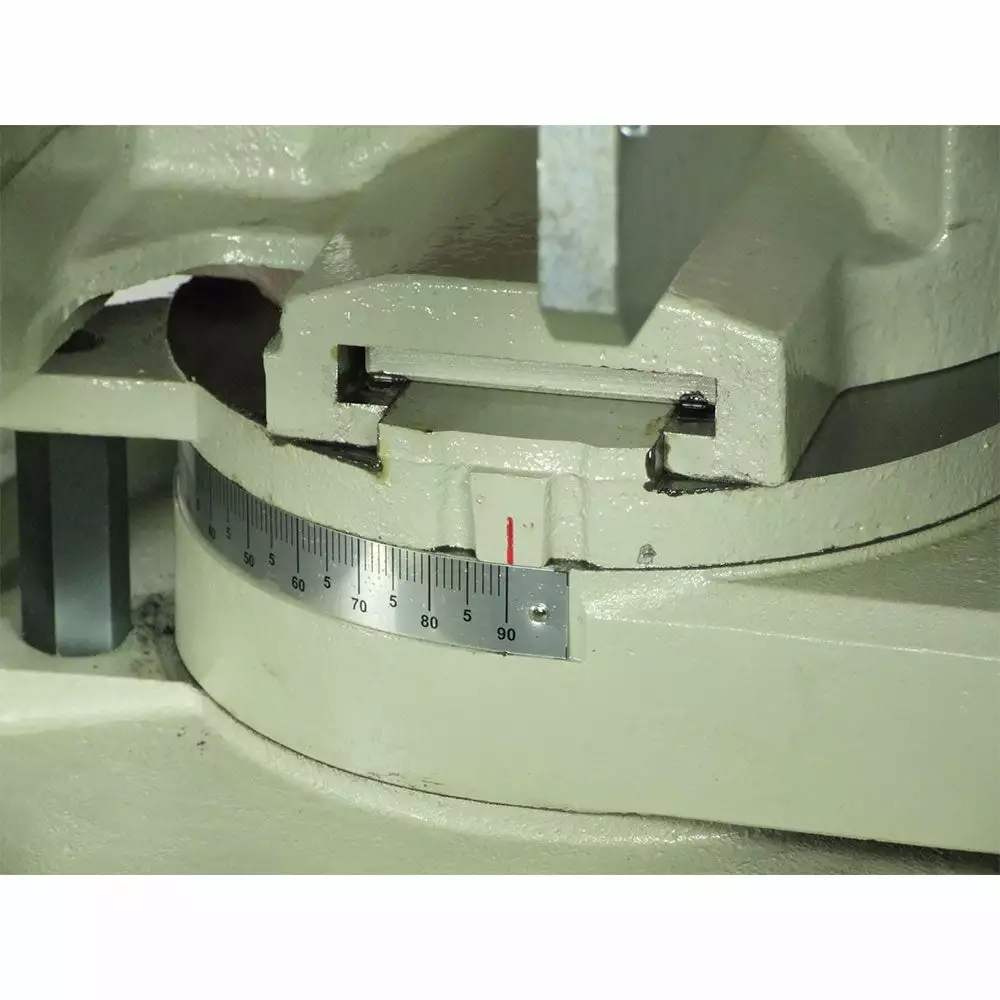

• Miters 45° left and right and can slot perpendicular to the material.
• Finetune the variable speed from 24 to 120 rpm to improve cut quality.
• Inverter-driven motor lets you adjust the blade speed with a dial to cover most applications.

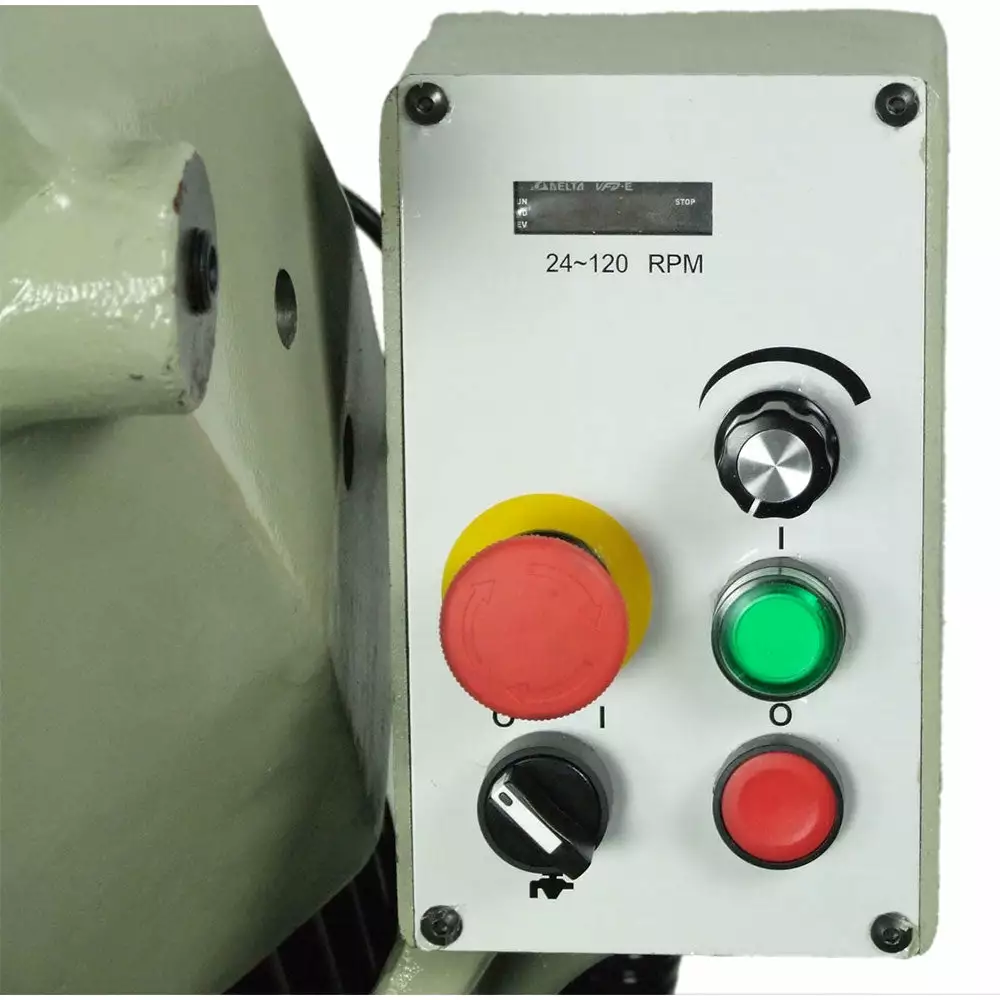

• Digital readout shows the blade speed to assist with repeatability.

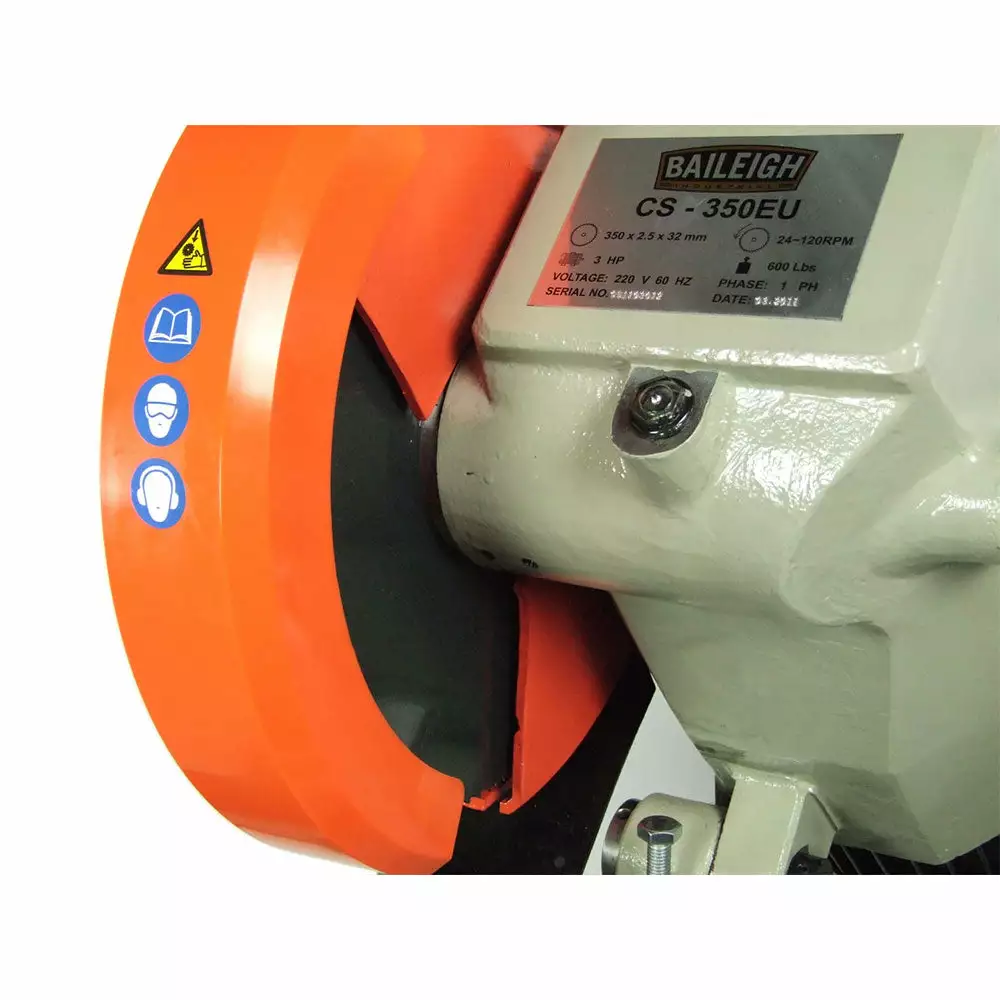

• 3 hp motor, coupled to a direct-drive gearbox, allows the blade to cut through the material chatter-free, so that blades last longer.
• Runs on 220-volt single-phase power and will work in almost any shop.
• European-style vise helps increase production with a taper lock system that speeds up clamping and unclamping.
• Vise clamps on both sides of the cut to reduce chatter and increase blade life.
• Serrated jaws provide maximum hold on the material.
• Thick cast iron base, mounted on a heavy steel stand, stabilizes the saw to ensure accurate cutting for many years.
• Powerful coolant pump lubricates the blade and washes metal chips away.
• Flood coolant system allows for mill-like cuts, prolongs blade and saw lifespan, and reduces operator effort.

What’s in The Box

• CS-350EU – VAriable Speed Circular Cold Saw
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	CS-350EU
Power	220V / 1-phase
Max. Blade Diameter	14″
Operation	Manual
Head Miter	45° Left / 45° Right
Round Solid at 45°	3″
Square Tube at 45°	3.5″ 3.5″
Round Tube at 45°	4″
Rectangle Tube at 45°	3.5″ x 2.8″
Round Solid at 90°	3.5″
Rectangle Tube at 90°	6.3″ x 3.5″
Square Tube at 90°	4″ x 4″
Round Tube at 90°	4.7″
Coolant System	Yes
Vice Style	Single Action with Cam Lock
Max. Vice Opening	6.5″
Head Style	Pivot
Arbor Size	1.26″
Motor	3 hp
Capacity Round 45°	4″
Blade Speed	24 – 120 (rpm)
Shipping Dimensions (Inches)	60x44x62
Weight	720 lbs
