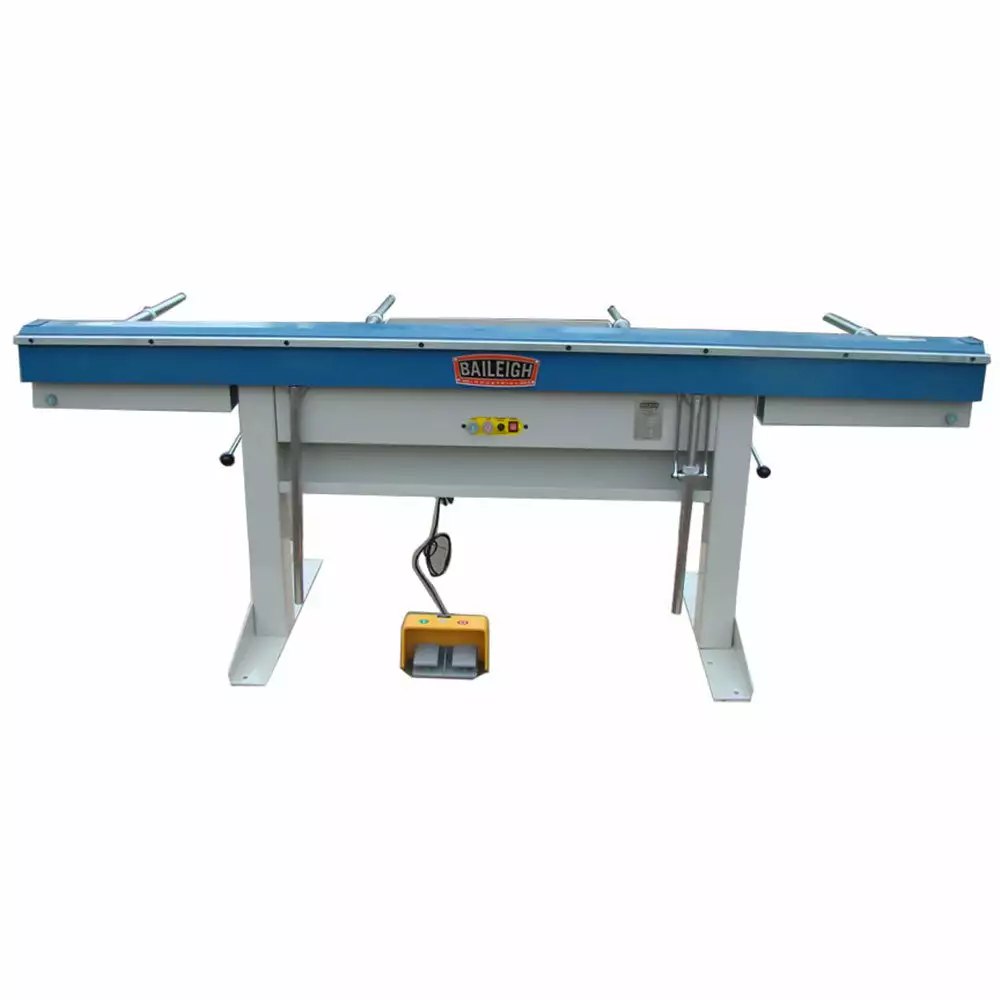

Baileigh 1000568 BB-9616M 96″ Magnetic Sheet Metal Brake Tools & Equipment

Features

• Same open-ended design as our BB-4816M, but with twice the length (4 feet more)!
• Bending length of 8 feet (96”).
• 16 gauge mild steel maximum capacity.

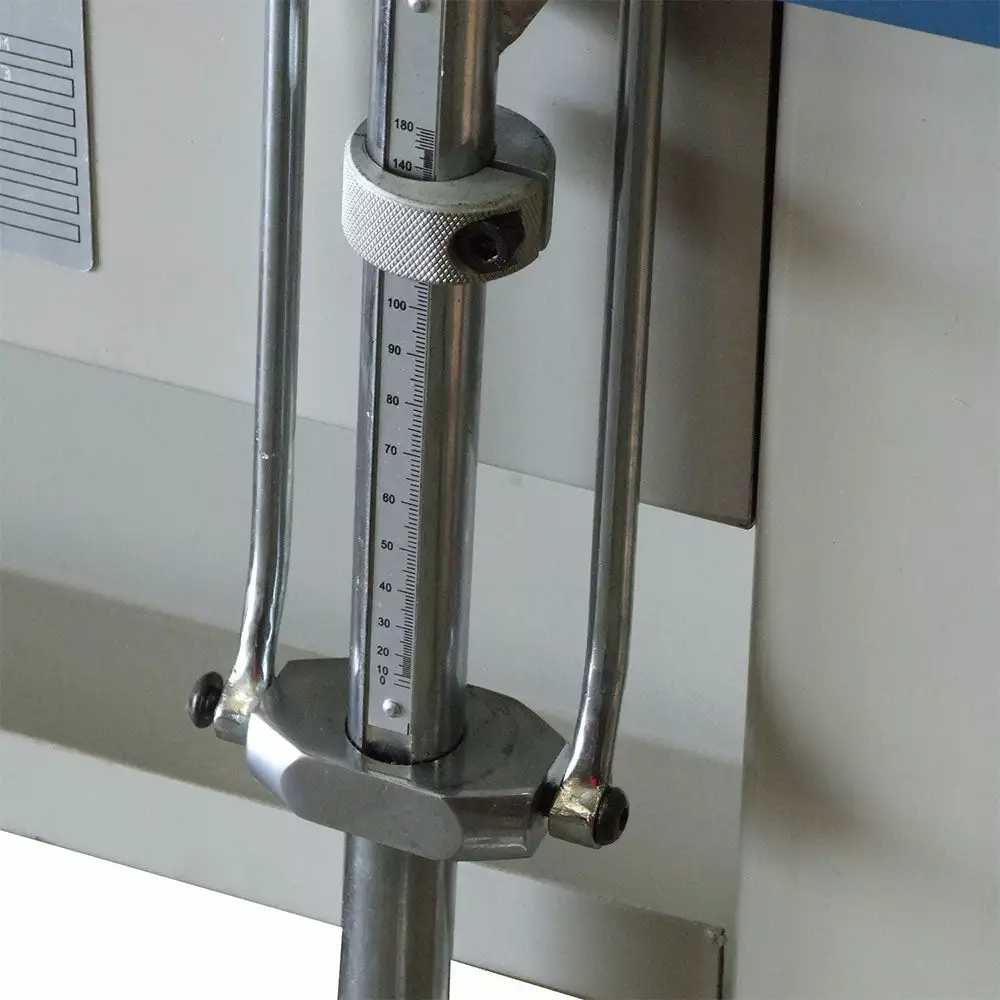

• Maximum bend angle of 180°.

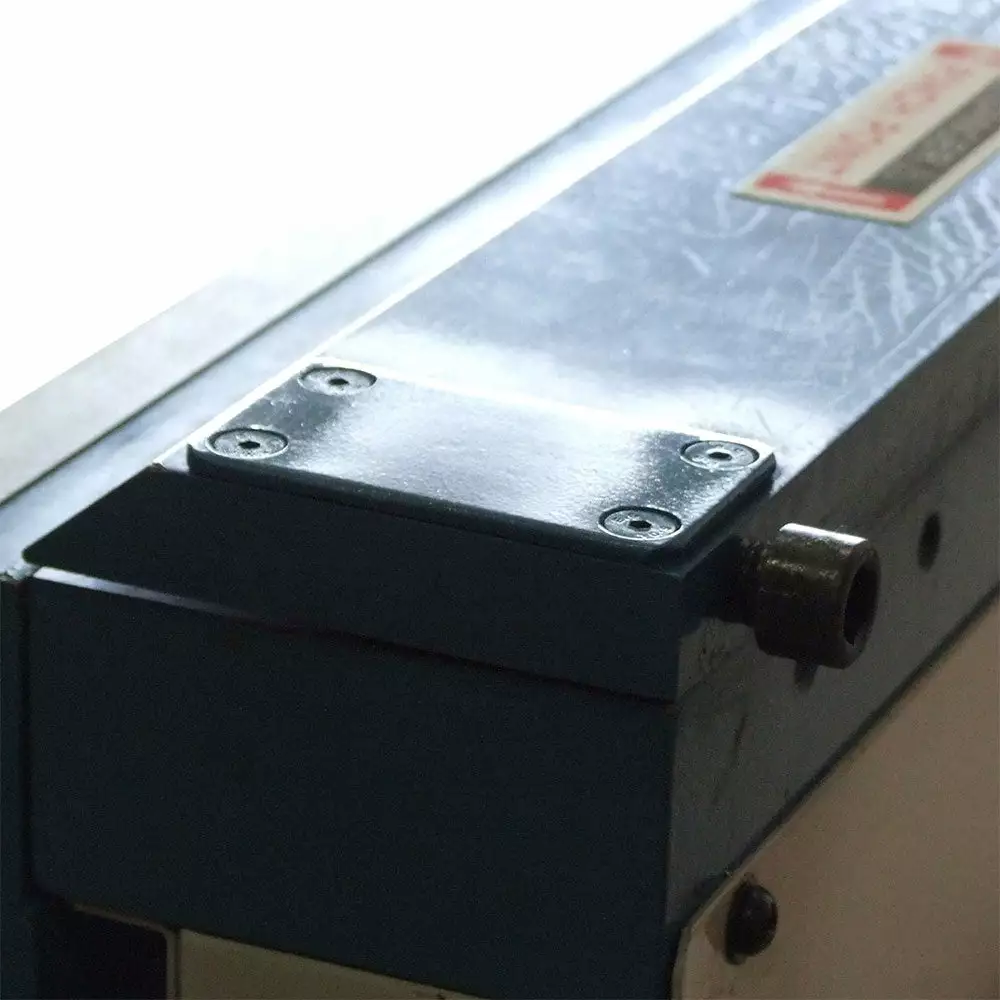

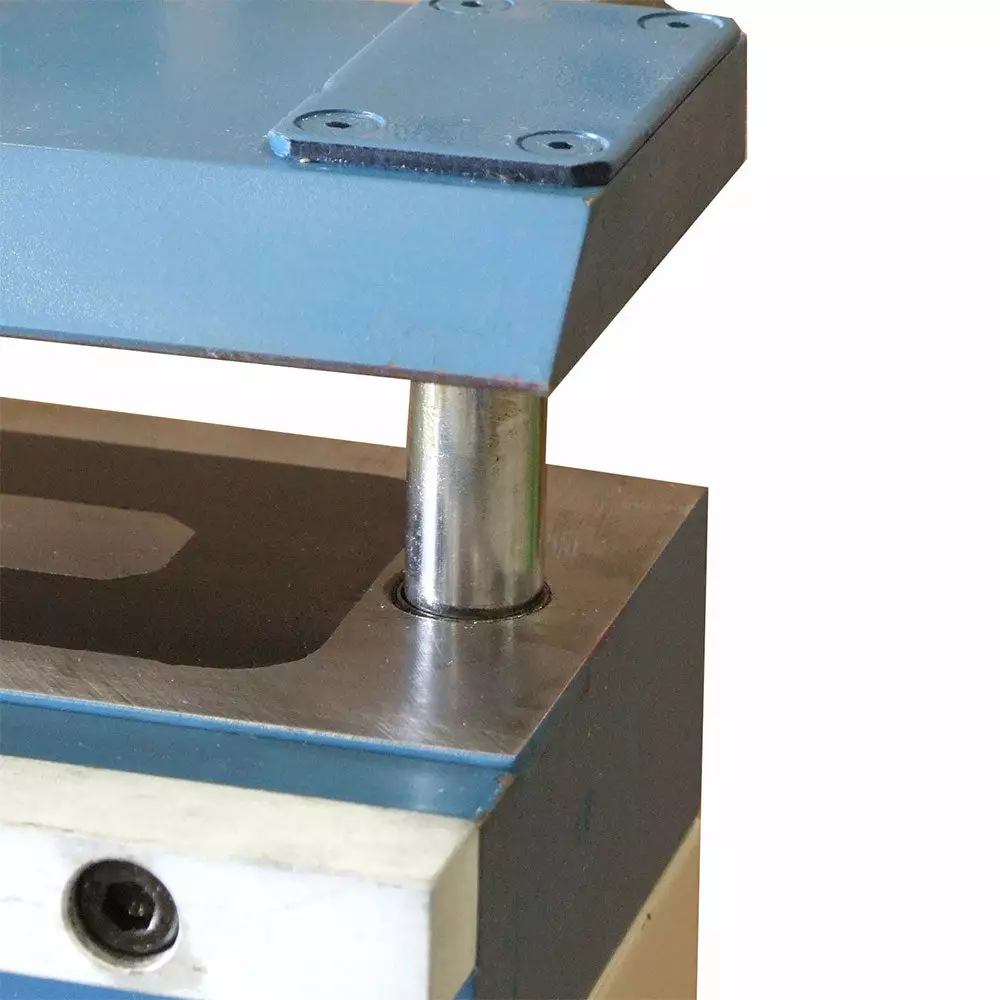

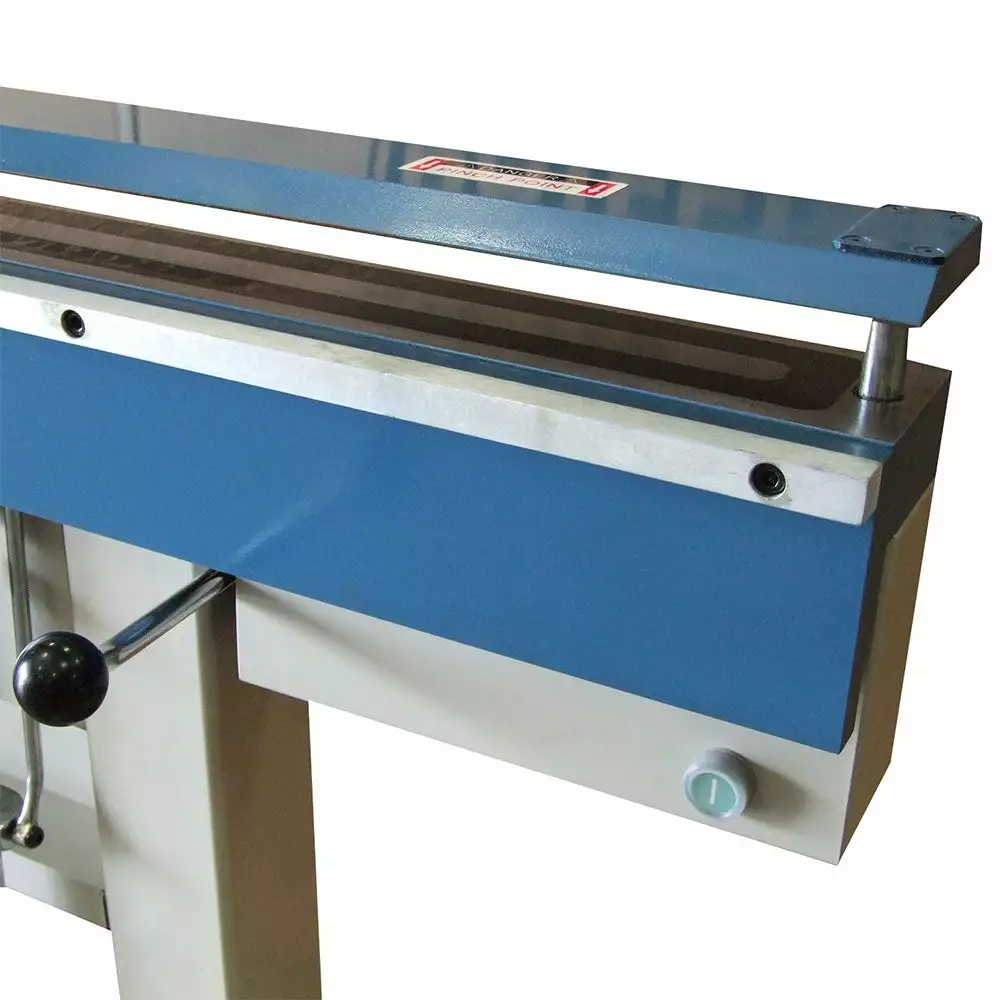

• Industrial-strength magnet clamps the material between the work surface and the bending “clamp bar” or finger.
• Requires 220-volt single-phase power for the magnet.
• This electromagnetic sheet metal brake can bend boxes or pans to almost any depth, since it isn’t reliant on conventional finger depths.
• Baileigh covers this magnetic sheet metal brake with a 1-year parts warranty.

What’s in The Box

• BB-9616M – Magnetic Sheet Metal Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BB-9616M
Power	220V / 1-phase
Thickness (SS)	16 ga. (20 ga.)
Clamping Force	6 ton
Bend Angle	0 – 180°
Max. Clamping Bar Lift	Unlimited
Length	96”
Things to Know Before Purchase	To achieve proper performance and prevent damage to the machine, the power supplied must be 220VAC +/-5% (209VAC to 231VAC). Failure to comply will damage the machine and void the warranty. Questions on this please call Baileigh Industrial 920-684-4990
Shipping Dimensions (Inches)	109x45x21
Weight	1070 lbs
