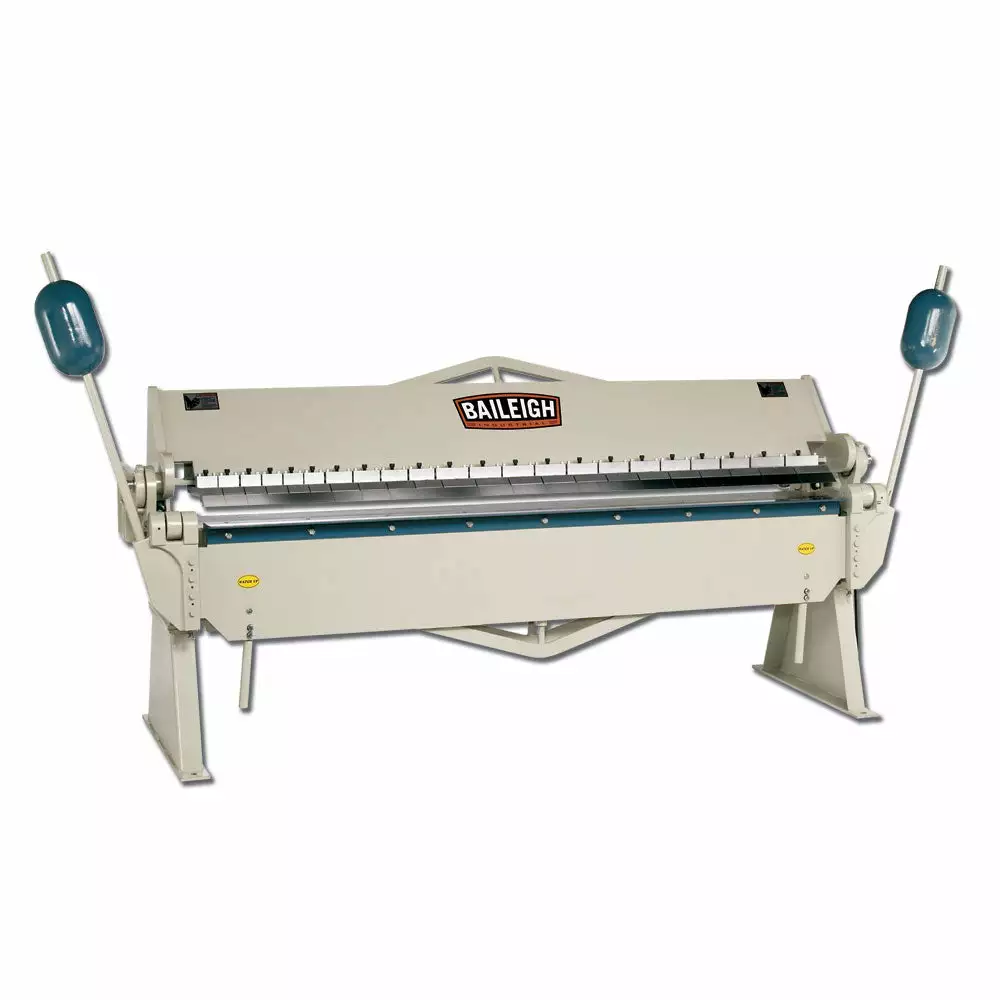

Baileigh 1000553 BB-9612 4′ X 8′ 12 Gauge Heavy Duty Box / Pan Brake

Features

• 8-foot (96”) bending width.
• Maximum capacity of 12 gauge mild steel and 16 gauge stainless steel.
• Bend angle of up to 135°.
• 22 finger assortment of varying sizes (6 fingers of 3″, 4 of 4″,10 of 5″, 2 of 6″).
• Maximum box depth of 6”.
• Hardened fingers and bending rail will produce extremely straight and tight bends, even when working with stainless steel.
• Apron side shafts ride in oilable bearings that improve tolerance and make the apron last longer.
• Heavy truss rods reinforce the rigidly-built apron and help it withstand deflection.
• 2 massive bending apron counterweights keeps fatigue low, even at full capacity.
• Mounted on a solid floor stand, raised to the ideal height, which improves efficiency and reduces operator fatigue.
• Electro-welded steel construction withstands bending at maximum capacity, day in and day out, for decades of quality bends.
• Heavy framework weighs an impressive 3200 lbs.
• Baileigh covers this sheet metal finger brake with a 1-year parts warranty.

What’s in The Box

• BB-9612 – Box / Pan Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BB-9612
Power	Manual
Min Reverse Bend	.625″
Thickness (SS)	12 ga. (16 ga.)
Box Depth	6″
Beam Adjustment	1″
Bend Angle	0 – 135°
Finger Sizes	3″ – 4″ – 5″ – 6″
Length	96”
Dimensions (Inches)	122 x 33 x 44
Weight	3340 lbs
