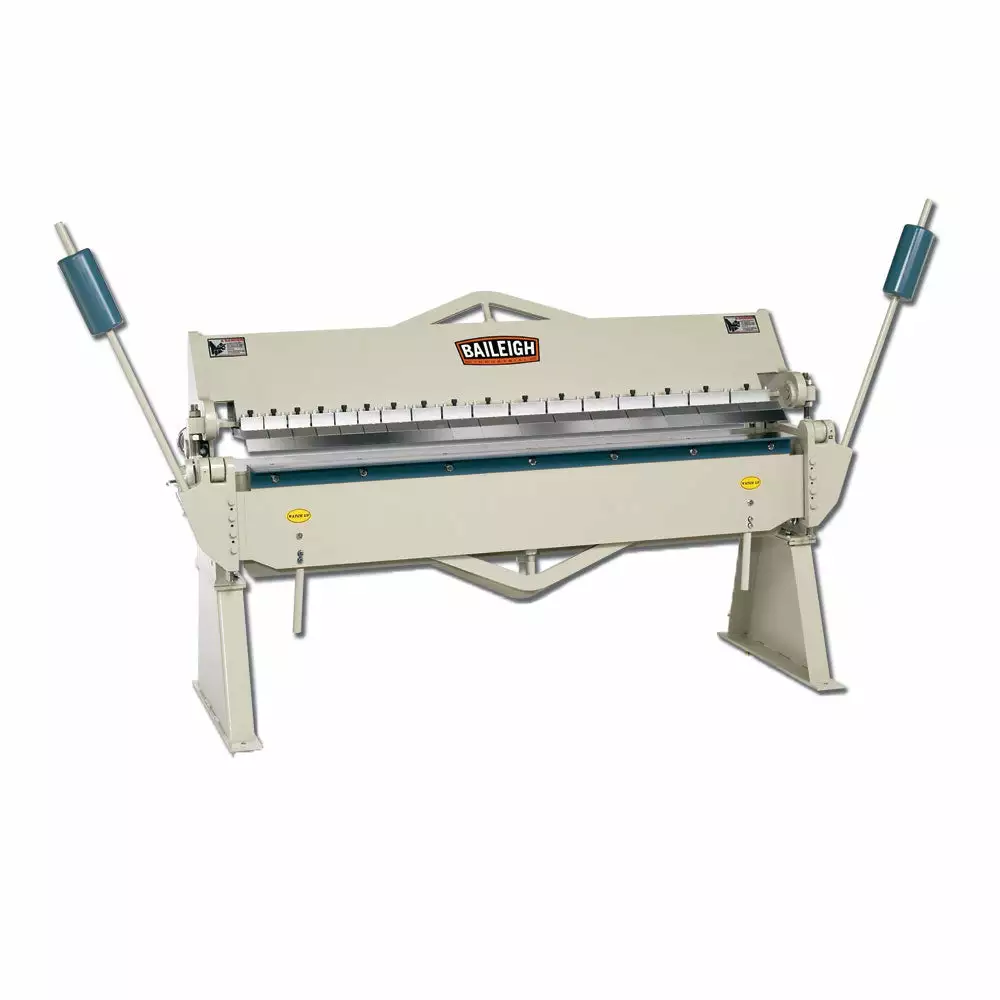

Baileigh 1000536 BB-7212 Manually Operated Box/Pan Finger Brake Tools & Equipment

Features

• Bends 12 gauge mild steel over its full 6-foot (72”) length.
• Maximum bend angle of 135°.
• Comes standard with 17 hardened fingers of varying sizes (6 fingers of 3″, 3 of 4″, 6 of 5″, and 2 of 6″) .
• 3-piece finger design allows for a 6” box depth.
• You can set up a long straight brake or a segmented one for boxes or pans.
• 2 counterbalance weights make it easy to bend at maximum capacity and reduce operator strain.
• Electro-welded and truss-supported steel frame prevents distortion or twisting and produces high-quality bends.
• Heavy-duty steel floor stand puts the beam at optimal working height.
• Baileigh covers this sheet metal finger brake with a 1-year parts warranty.

What’s in The Box

• BB-7212 – Manually Operated Box and Pan (Finger) Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BB-7212
Power	Manual
Min Reverse Bend	.625″
Thickness (SS)	12 ga. (16 ga.)
Box Depth	6″
Beam Adjustment	1″
Bend Angle	0 – 135°
Finger Sizes	3″ – 4″ – 5″ – 6″
Length	72”
Dimensions (Inches)	96 x 32 x 43
Weight	2100 lbs
